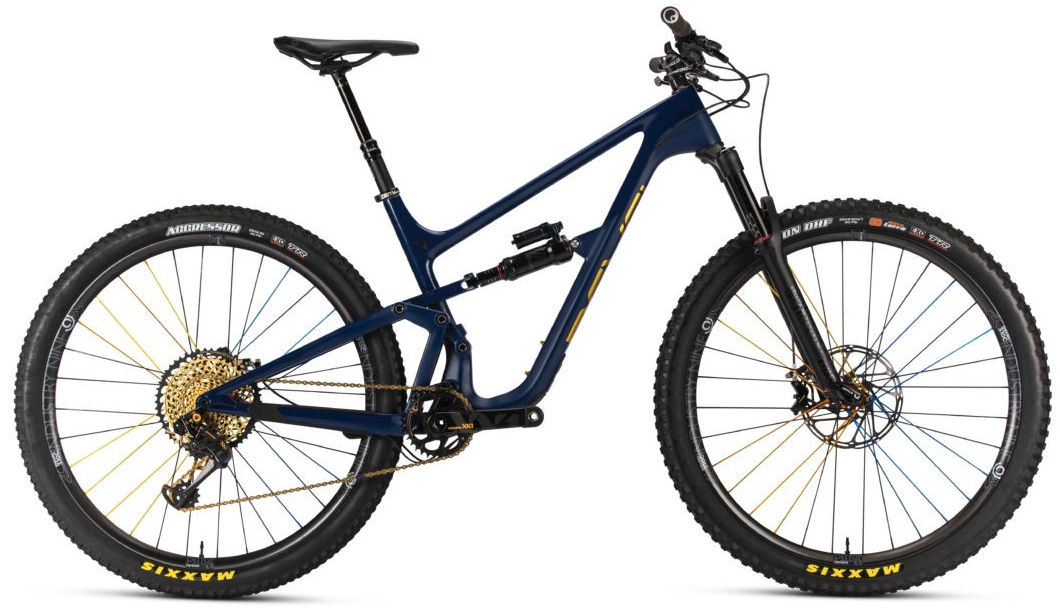

2019 Revel Rascal geometry
Full frame geometry for the 2019 Revel Rascal, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 424 | 75 | 66 | 96 | 547 | 385 | 682 | 38 | 433 | 1182 | 51 | 107 |
| M | 610 | 444 | 75 | 66 | 107 | 568 | 415 | 698 | 38 | 433 | 1202 | 51 | 107 |
| L | 618 | 464 | 75 | 66 | 116 | 590 | 445 | 716 | 38 | 433 | 1220 | 51 | 107 |
| XL | 628 | 489 | 75 | 66 | 127 | 612 | 475 | 736 | 38 | 433 | 1247 | 51 | 107 |
All measurements in millimetres unless marked (°) for angles.
