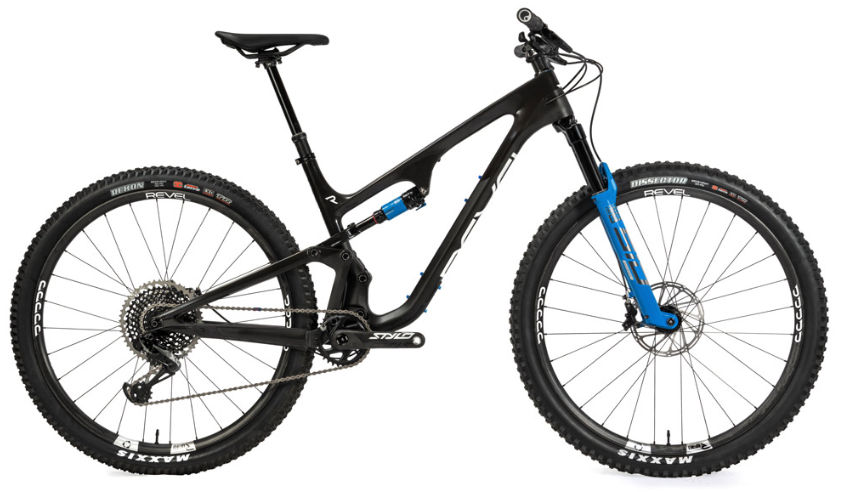

2020 Revel Ranger geometry
Full frame geometry for the 2020 Revel Ranger, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 600 | 430 | 75.3 | 67.5 | 95 | 594 | 373 | 699 | 38 | 713 | 436 | 1146 | 44 | 108 |
| M | 609 | 453 | 75.3 | 67.5 | 105 | 616 | 403 | 699 | 38 | 737 | 436 | 1170 | 44 | 108 |
| L | 619 | 473 | 75.3 | 67.5 | 116 | 639 | 439 | 699 | 38 | 761 | 436 | 1194 | 44 | 108 |
| XL | 629 | 498 | 75.3 | 67.5 | 127 | 667 | 457 | 700 | 38 | 790 | 436 | 1223 | 44 | 108 |
All measurements in millimetres unless marked (°) for angles.
