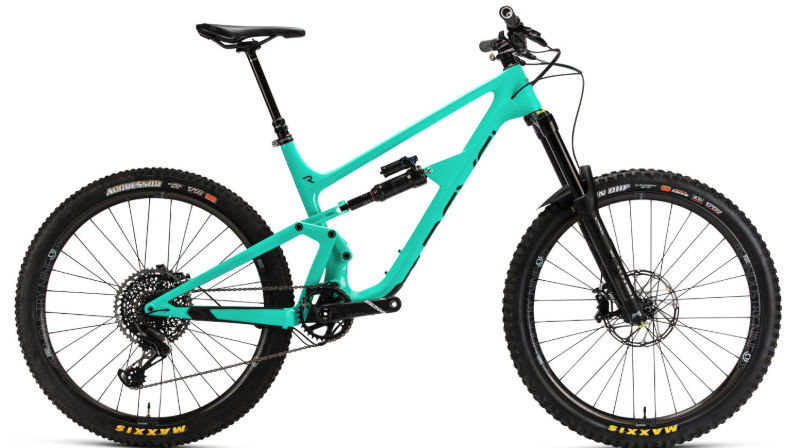

2019 Revel Rail geometry
Full frame geometry for the 2019 Revel Rail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 430 | 75 | 65 | 104 | 555 | 386 | 695 | 11 | 430 | 1173 | 46 | 115 |
| M | 607 | 450 | 75 | 65 | 115 | 575 | 416 | 716 | 11 | 430 | 1208 | 46 | 115 |
| L | 615 | 470 | 75 | 65 | 125 | 590 | 446 | 716 | 11 | 430 | 1230 | 46 | 115 |
| XL | 625 | 495 | 75 | 65 | 135 | 612 | 476 | 742 | 11 | 430 | 1254 | 46 | 115 |
All measurements in millimetres unless marked (°) for angles.
