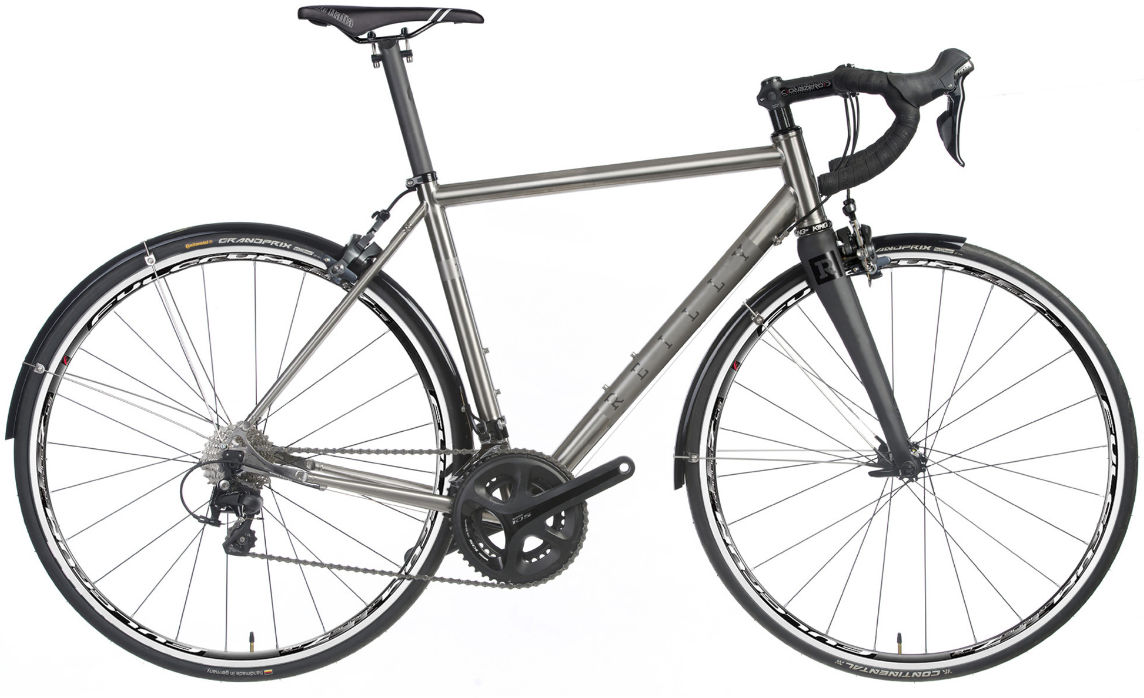

2017 Reilly Motive T325 geometry
Full frame geometry for the 2017 Reilly Motive T325, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 541 | 374 | 74 | 72 | 130 | 530 | 490 | 753 | 72 | 578 | 407 | 974 | 43 | 63 |
| M | 564 | 382 | 73.5 | 73 | 150 | 550 | 510 | 774 | 72 | 584 | 408 | 981 | 43 | 56 |
| L | 583 | 392 | 73 | 73 | 170 | 570 | 530 | 792 | 72 | 599 | 410 | 996 | 43 | 56 |
| XL | 597 | 407 | 73 | 73 | 185 | 590 | 540 | 804 | 72 | 619 | 410 | 1016 | 43 | 56 |
All measurements in millimetres unless marked (°) for angles.
