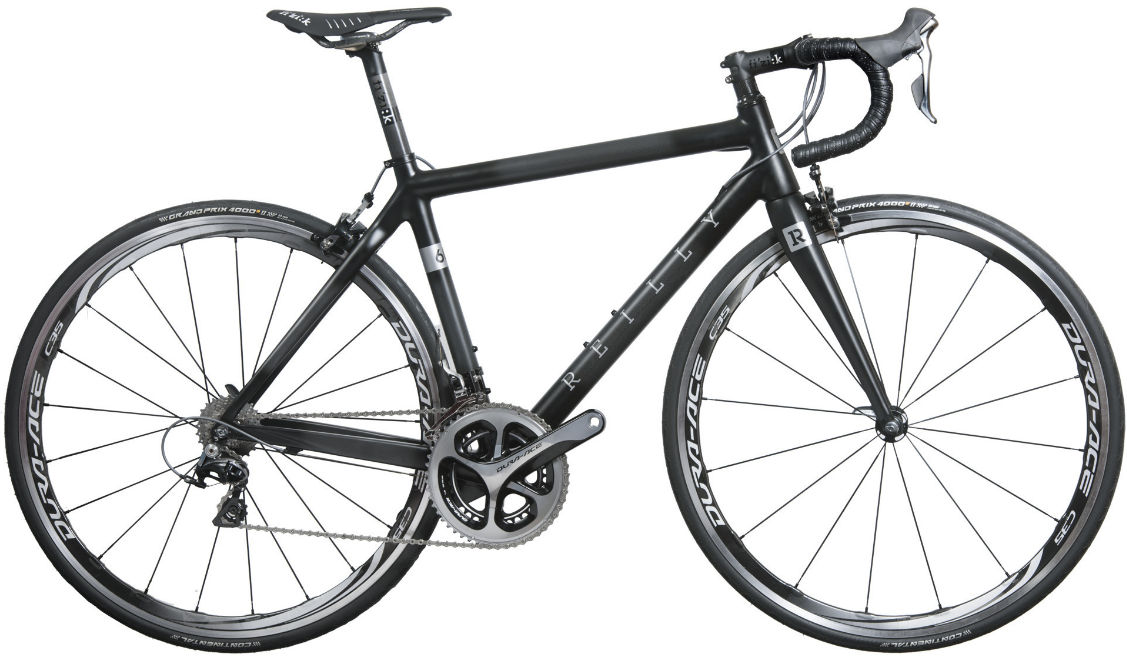

2017 Reilly 600SL geometry
Full frame geometry for the 2017 Reilly 600SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 548 | 372 | 74 | 72 | 135 | 530 | 480 | 779 | 73 | 408 |
| M | 570 | 381 | 73.5 | 73 | 155 | 550 | 500 | 801 | 73 | 409 |
| L | 590 | 390 | 73 | 73 | 175 | 570 | 520 | 822 | 73 | 409 |
| XL | 611 | 398 | 72.5 | 73.5 | 195 | 590 | 540 | 844 | 73 | 413 |
All measurements in millimetres unless marked (°) for angles.
