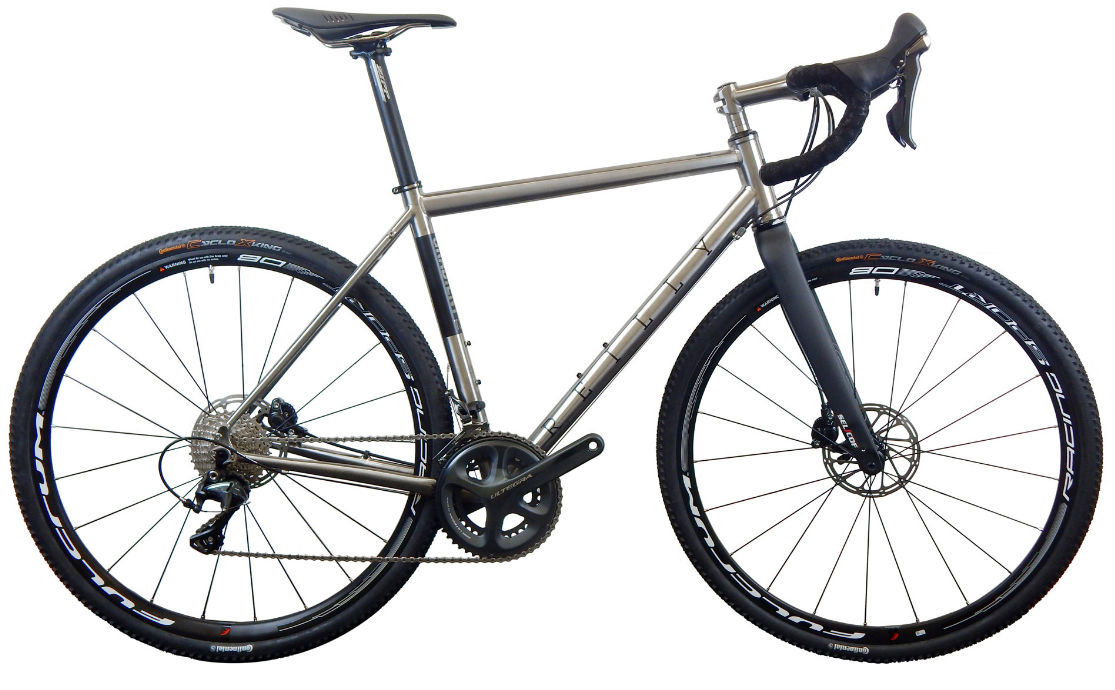

2017 Reilly Gradient T325 geometry
Full frame geometry for the 2017 Reilly Gradient T325, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 543 | 394 | 75 | 71 | 120 | 540 | 490 | 802 | 70 | 609 | 420 | 1019 | 47 |
| M | 559 | 390 | 74 | 71.5 | 135 | 550 | 510 | 822 | 70 | 605 | 425 | 1020 | 47 |
| L | 580 | 398 | 73.5 | 72 | 155 | 570 | 530 | 844 | 70 | 615 | 425 | 1030 | 47 |
| XL | 599 | 407 | 73 | 72 | 175 | 590 | 550 | 864 | 70 | 630 | 425 | 1045 | 47 |
All measurements in millimetres unless marked (°) for angles.
