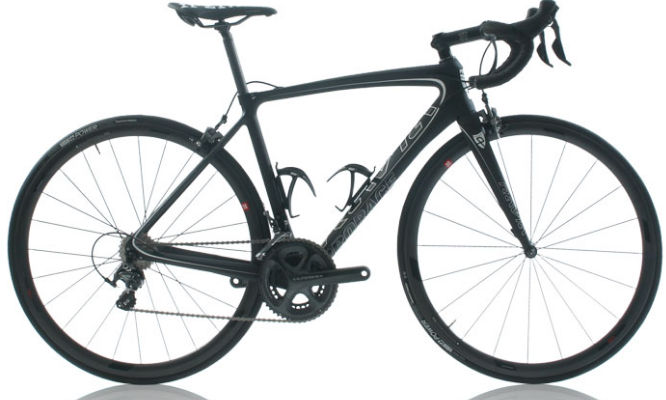

2016 Prorace Ravia geometry
Full frame geometry for the 2016 Prorace Ravia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 533 | 387 | 74.5 | 72 | 148 | 535 | 470 | 405 |
| M | 550 | 393 | 74 | 72.8 | 158 | 550 | 490 | 405 |
| L | 566 | 395 | 73.3 | 73.3 | 170 | 565 | 510 | 405 |
| XL | 586 | 406 | 73 | 73.5 | 179 | 585 | 540 | 405 |
All measurements in millimetres unless marked (°) for angles.
