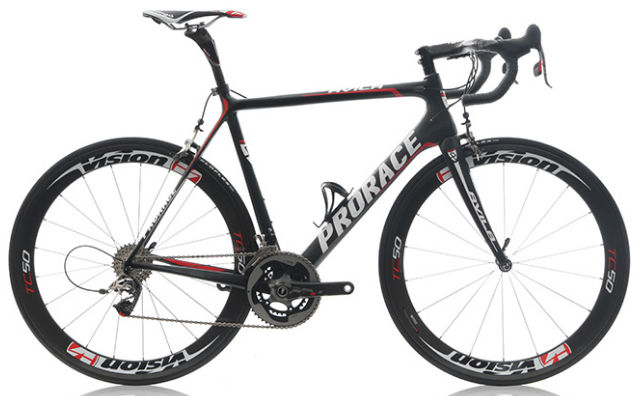

2016 Prorace Avila geometry
Full frame geometry for the 2016 Prorace Avila, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 504 | 375 | 74.5 | 71 | 105 | 515 | 490 | 408 |
| S | 523 | 380 | 74 | 72 | 125 | 530 | 520 | 408 |
| M | 543 | 389 | 74 | 73 | 145 | 545 | 540 | 408 |
| L | 557 | 395 | 73.5 | 73 | 160 | 560 | 560 | 408 |
| XL | 581 | 403 | 73 | 73 | 185 | 580 | 580 | 408 |
All measurements in millimetres unless marked (°) for angles.
