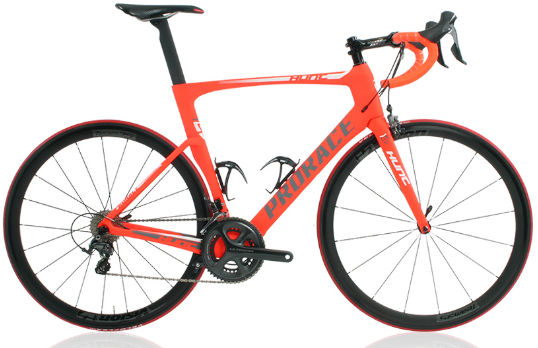

2016 Prorace Hunt geometry
Full frame geometry for the 2016 Prorace Hunt, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 517 | 377 | 74.5 | 71.5 | 115 | 520 | 440 | 395 |
| M | 534 | 382 | 73.5 | 72.5 | 130 | 540 | 480 | 400 |
| L | 558 | 385 | 73 | 73 | 155 | 555 | 510 | 402 |
| XL | 572 | 395 | 73 | 73 | 170 | 570 | 540 | 402 |
| XXL | 593 | 398 | 72.5 | 73.5 | 190 | 585 | 570 | 404 |
All measurements in millimetres unless marked (°) for angles.
