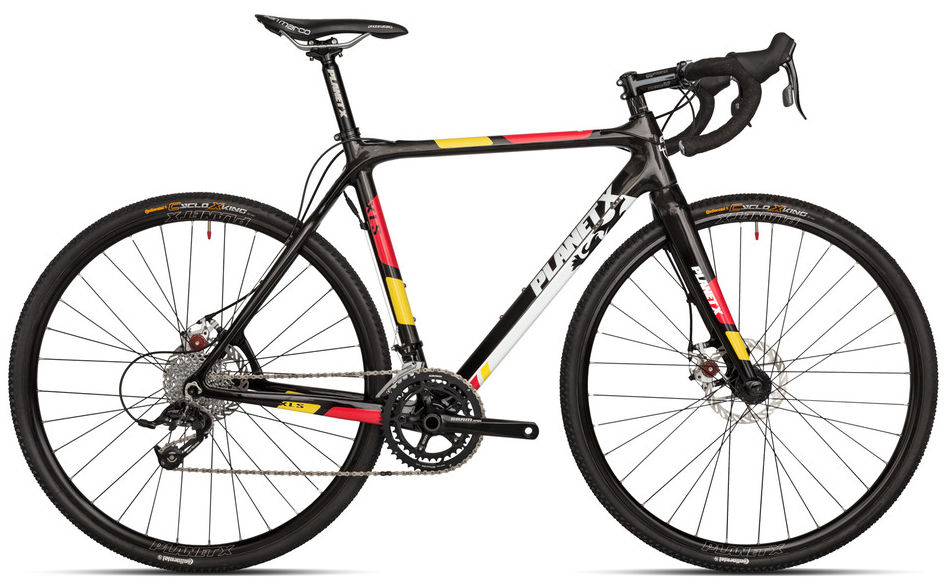

2015 Planet X XLS geometry
Full frame geometry for the 2015 Planet X XLS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 51 | 529 | 370 | 74.4 | 71.2 | 120 | 516 | 510 | 60 | 425 |
| 54 | 546 | 377 | 73.9 | 72.3 | 133 | 535 | 540 | 60 | 425 |
| 57 | 560 | 391 | 73.5 | 72.5 | 147 | 555 | 570 | 60 | 425 |
| 59 | 575 | 392 | 73 | 72.7 | 162 | 568 | 590 | 60 | 425 |
All measurements in millimetres unless marked (°) for angles.
