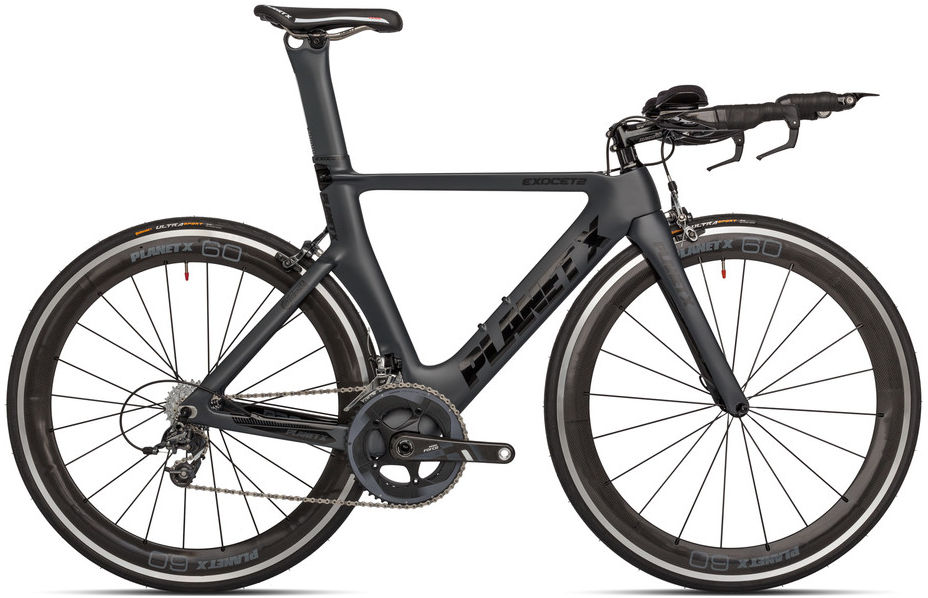

2015 Planet X Exocet 2 geometry
Full frame geometry for the 2015 Planet X Exocet 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 481 | 401 | 78 | 72 | 80 | 500 | 65 | 584 | 385 | 960 | 43 |
| M | 485 | 415 | 78 | 72 | 88 | 515 | 65 | 600 | 385 | 976 | 43 |
| L | 497 | 437 | 78 | 72 | 100 | 540 | 65 | 626 | 385 | 1002 | 43 |
| XL | 523 | 447 | 78 | 72.5 | 125 | 555 | 65 | 639 | 385 | 1015 | 43 |
All measurements in millimetres unless marked (°) for angles.
