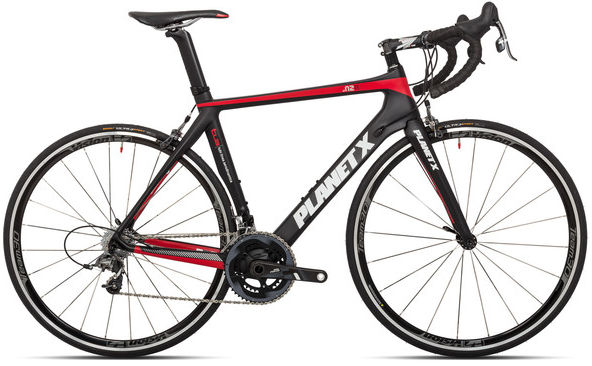

2015 Planet X N2A geometry
Full frame geometry for the 2015 Planet X N2A, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 502 | 374 | 74.5 | 72 | 101 | 515 | 480 | 70 | 404 |
| S | 527 | 381 | 74.1 | 72.2 | 124 | 531 | 505 | 70 | 406 |
| M | 544 | 383 | 73.7 | 72.6 | 145 | 546 | 540 | 68 | 408 |
| L | 562 | 395 | 73.3 | 72.6 | 165 | 564 | 555 | 68 | 408 |
| XL | 582 | 403 | 73 | 73 | 184 | 581 | 580 | 67 | 410 |
| XXL | 606 | 406 | 72.5 | 73.5 | 210 | 597 | 605 | 67 | 410 |
All measurements in millimetres unless marked (°) for angles.
