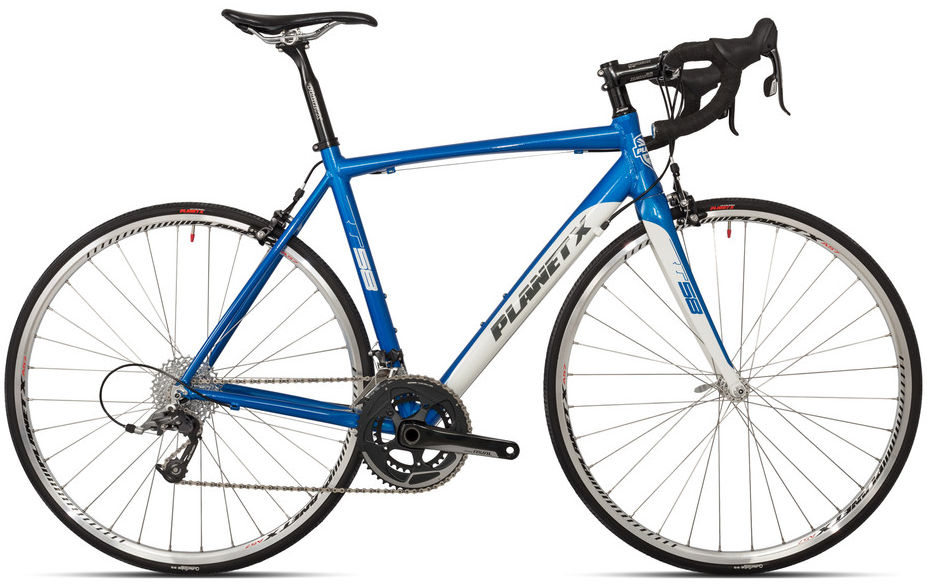

2015 Planet X RT-58 Alloy MK I geometry
Full frame geometry for the 2015 Planet X RT-58 Alloy MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 374 | 74.6 | 72.1 | 130 | 521 | 500 | 742 | 410 |
| S | 546 | 378 | 74.2 | 72.8 | 140 | 534 | 520 | 763 | 410 |
| M | 557 | 380 | 73.7 | 73 | 150 | 543 | 540 | 777 | 410 |
| L | 577 | 386 | 73.3 | 73.5 | 170 | 560 | 560 | 806 | 410 |
| XL | 597 | 393 | 73 | 73.8 | 190 | 575 | 580 | 816 | 410 |
All measurements in millimetres unless marked (°) for angles.
