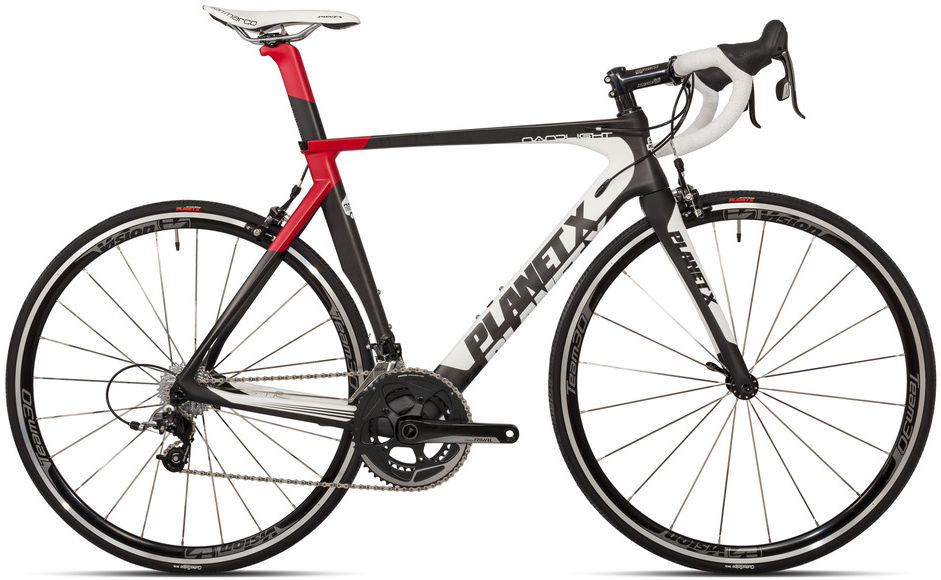

2015 Planet X Nanolight geometry
Full frame geometry for the 2015 Planet X Nanolight, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 507 | 370 | 74.5 | 71.5 | 112 | 511 | 480 | 68 | 405 | 964 |
| S | 526 | 379 | 74 | 72.5 | 127 | 530 | 510 | 68 | 405 | 970 |
| M | 542 | 385 | 73 | 73 | 142 | 550 | 530 | 68 | 408 | 979 |
| L | 557 | 389 | 72.5 | 73.2 | 155 | 565 | 550 | 68 | 405 | 983 |
| XL | 571 | 394 | 72 | 73.5 | 170 | 580 | 570 | 68 | 405 | 990 |
All measurements in millimetres unless marked (°) for angles.
