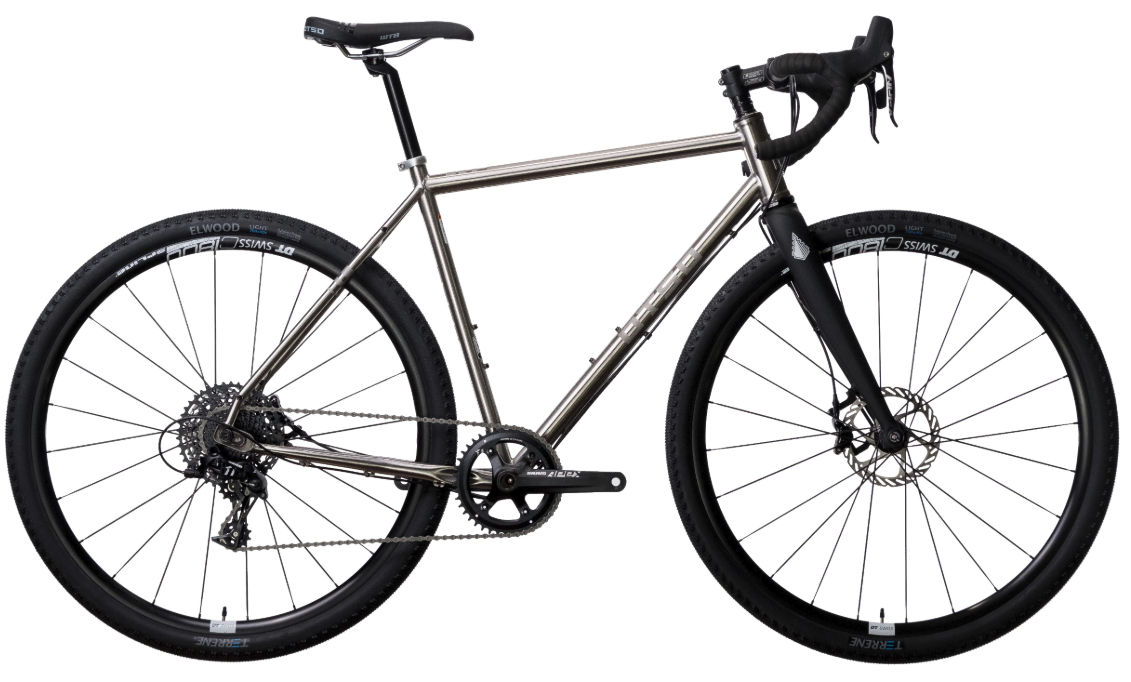

2017 Otso Warakin geometry
Full frame geometry for the 2017 Otso Warakin, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 524 | 370 | 75 | 70 | 90 | 510 | 470 | 787 | 72 | 440 | 1030 | 47 | 72 |
| 52 | 549 | 378 | 74.5 | 70.5 | 115 | 530 | 505 | 818 | 72 | 440 | 1037 | 47 | 71 |
| 54 | 570 | 381 | 74 | 71 | 135 | 545 | 530 | 842 | 72 | 440 | 1043 | 47 | 70 |
| 56 | 596 | 383 | 73 | 71.5 | 160 | 565 | 550 | 867 | 72 | 440 | 1048 | 47 | 68 |
| 58 | 622 | 384 | 72.5 | 72 | 185 | 580 | 570 | 891 | 72 | 440 | 1052 | 47 | 65 |
| 60 | 641 | 392 | 72 | 72 | 205 | 600 | 590 | 912 | 72 | 440 | 1066 | 47 | 65 |
All measurements in millimetres unless marked (°) for angles.
