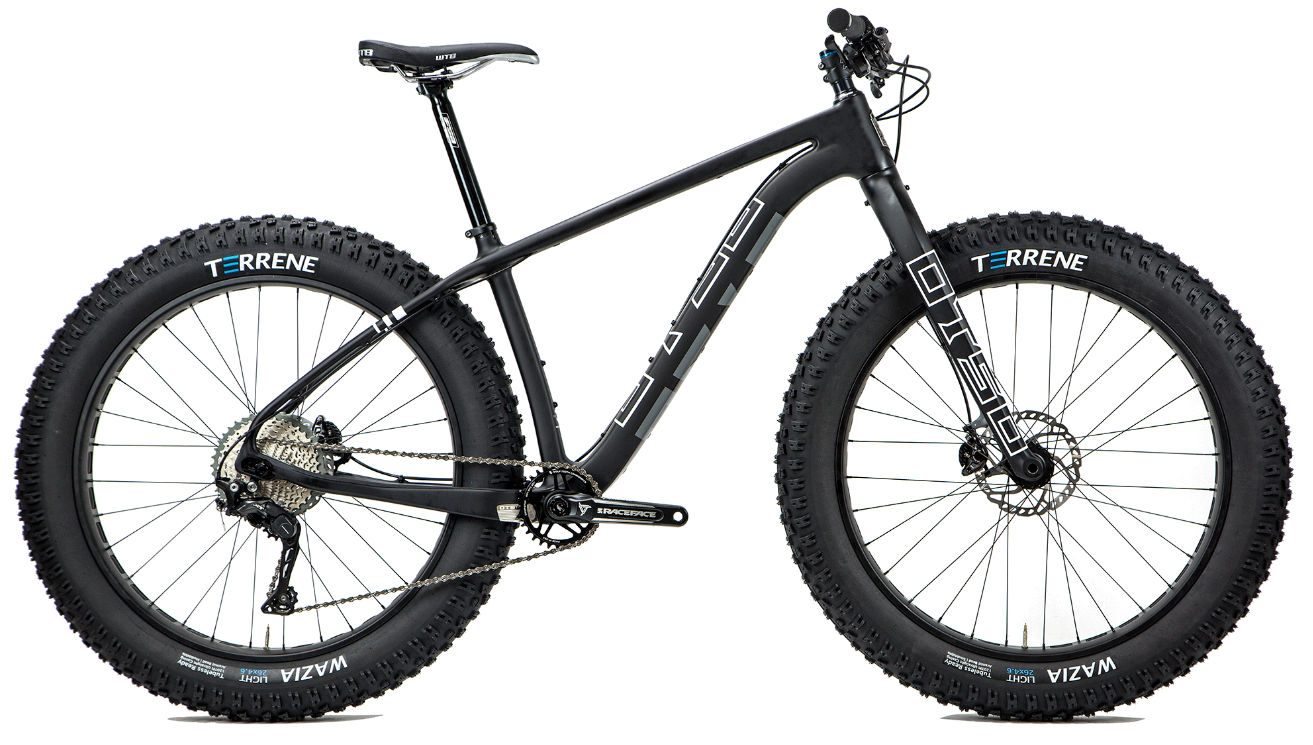

2017 Otso Voytek Fat geometry
Full frame geometry for the 2017 Otso Voytek Fat, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 581 | 407 | 73 | 69 | 90 | 585 | 381 | 697 | 62 | 450 | 1112 | 51 | 86 |
| M | 602 | 426 | 73 | 69 | 115 | 610 | 432 | 739 | 62 | 450 | 1138 | 51 | 86 |
| L | 616 | 442 | 73 | 69 | 130 | 630 | 483 | 780 | 62 | 450 | 1159 | 51 | 86 |
| XL | 634 | 451 | 73 | 69 | 150 | 645 | 533 | 815 | 62 | 450 | 1176 | 51 | 86 |
All measurements in millimetres unless marked (°) for angles.
