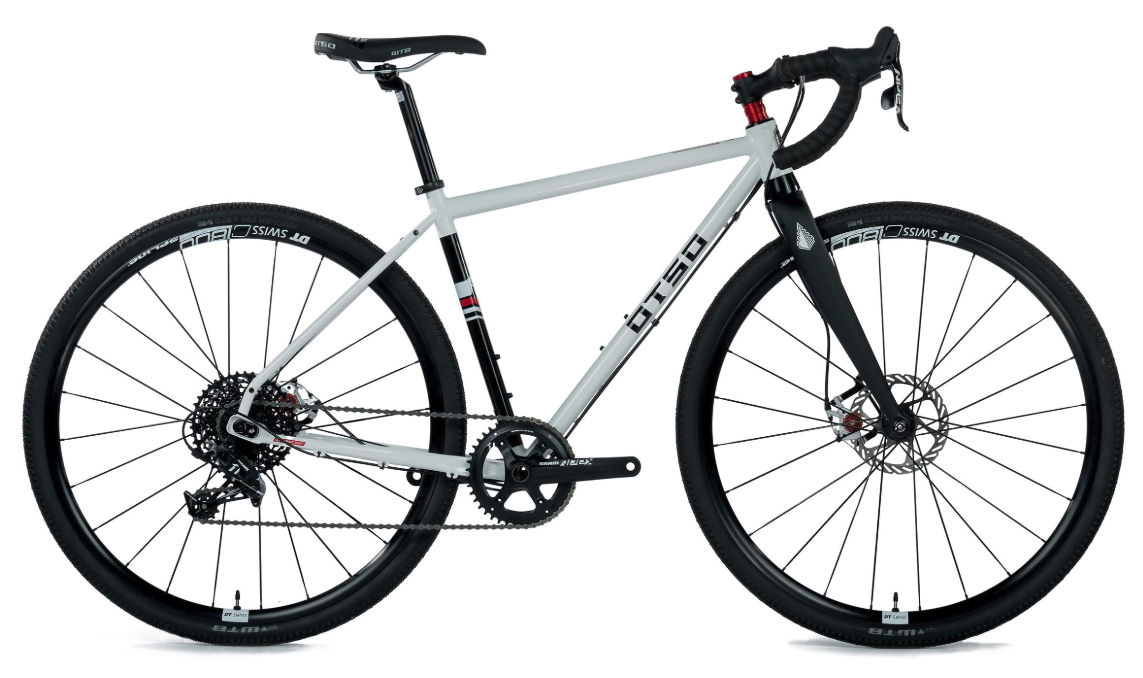

2018 Otso Waheela S geometry
Full frame geometry for the 2018 Otso Waheela S, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 540 | 375 | 72.5 | 71 | 94 | 546 | 475 | 735 | 70 | 589 | 430 | 1018 | 47 | 71 |
| M | 555 | 385 | 72.5 | 71.5 | 107 | 560 | 510 | 764 | 70 | 599 | 430 | 1025 | 47 | 68 |
| L | 595 | 395 | 72.5 | 71.5 | 149 | 583 | 540 | 796 | 70 | 623 | 430 | 1049 | 47 | 68 |
| XL | 635 | 405 | 72.5 | 71.5 | 191 | 605 | 570 | 830 | 70 | 646 | 430 | 1072 | 47 | 68 |
All measurements in millimetres unless marked (°) for angles.
