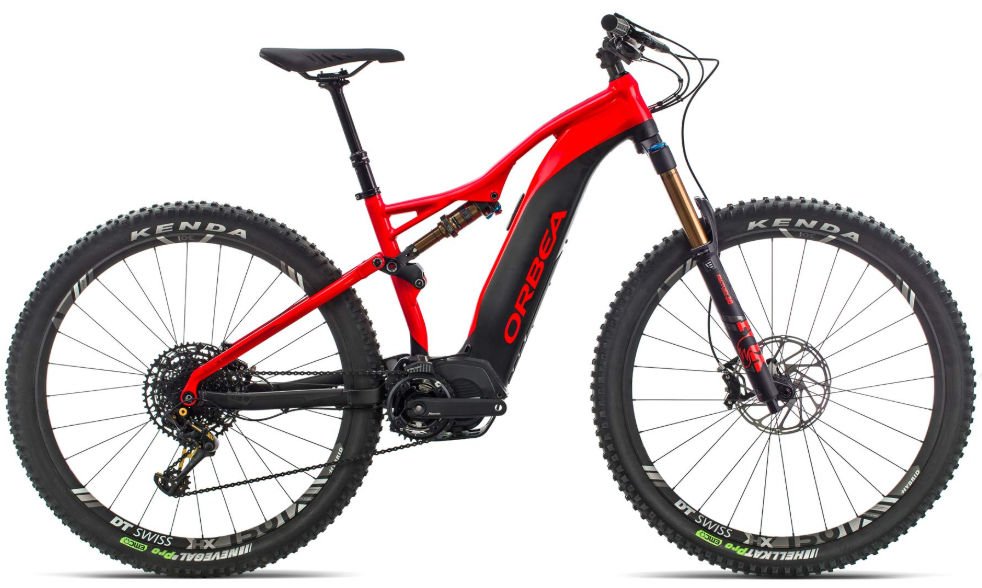

2019 Orbea Wild FS geometry
Full frame geometry for the 2019 Orbea Wild FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 620 | 385 | 74 | 67 | 115 | 565 | 390 | 715 | 30 | 450 | 1132 | 44 |
| M | 632 | 400 | 74 | 67 | 128 | 581 | 430 | 745 | 30 | 450 | 1152 | 44 |
| L | 646 | 425 | 74 | 67 | 143 | 610 | 470 | 765 | 30 | 450 | 1183 | 44 |
| XL | 661 | 450 | 74 | 67 | 159 | 639 | 510 | 790 | 30 | 450 | 1215 | 44 |
All measurements in millimetres unless marked (°) for angles.
