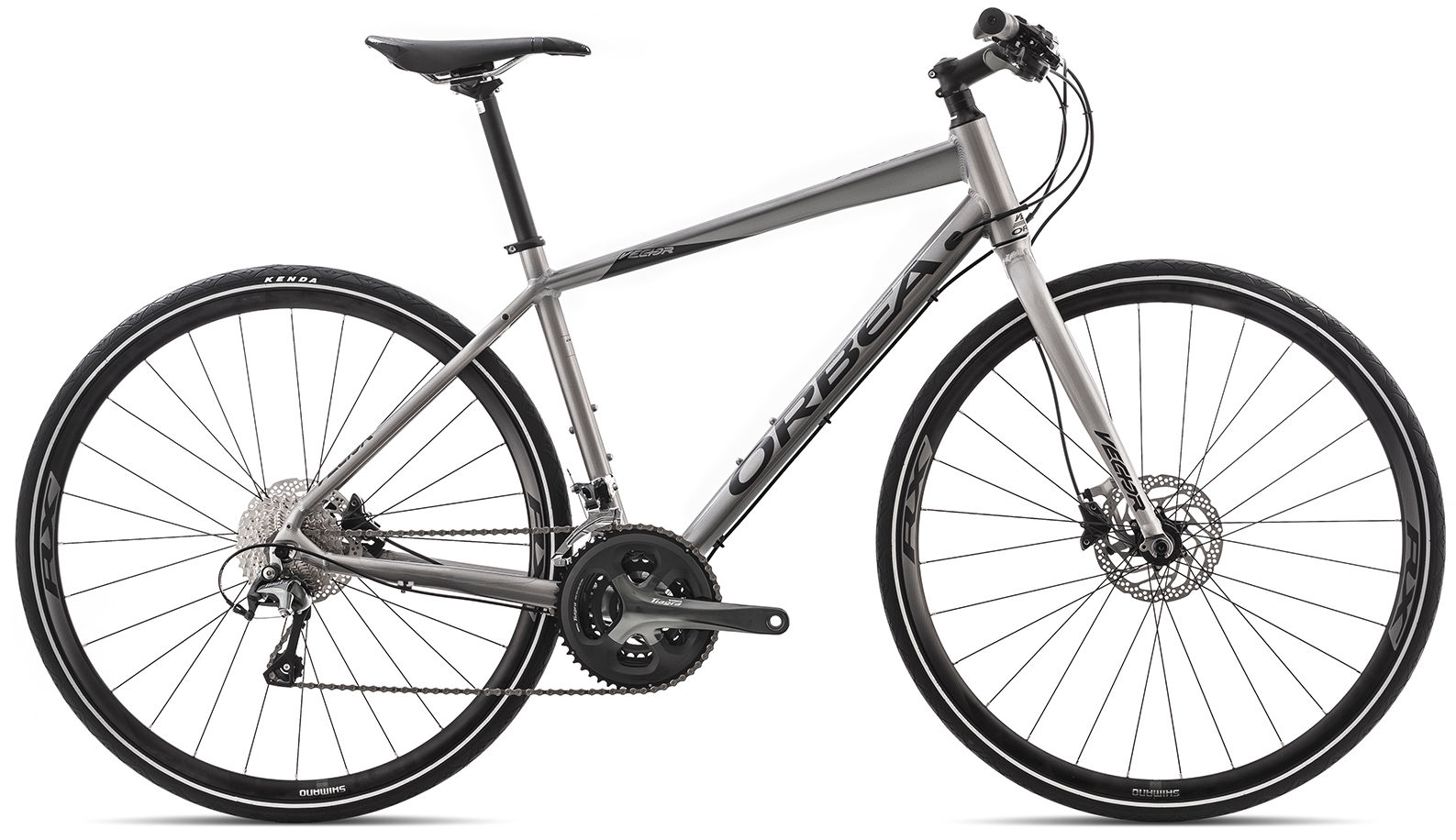

2016 Orbea Vector geometry
Full frame geometry for the 2016 Orbea Vector, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 561 | 388 | 73.5 | 70 | 125 | 554 | 430 | 728 | 72 | 614 | 435 | 1039 | 42 |
| M | 588 | 405 | 73.5 | 71 | 150 | 580 | 470 | 760 | 72 | 632 | 435 | 1057 | 42 |
| L | 624 | 425 | 73.5 | 71 | 188 | 610 | 510 | 797 | 72 | 663 | 435 | 1088 | 42 |
| XL | 662 | 434 | 73.5 | 71 | 228 | 630 | 550 | 835 | 72 | 685 | 435 | 1110 | 42 |
All measurements in millimetres unless marked (°) for angles.
