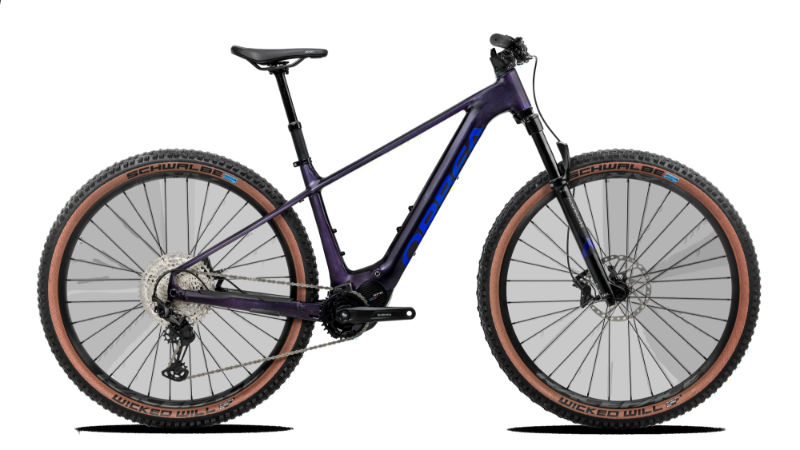

2026 Orbea Urrun geometry
Full frame geometry for the 2026 Orbea Urrun, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 410 | 74.5 | 66 | 100 | 575 | 400 | 775 | 445 | 1149 | 44 |
| M | 630 | 430 | 74.5 | 66 | 105 | 596 | 420 | 780 | 445 | 1171 | 44 |
| L | 639 | 455 | 74.5 | 66 | 115 | 624 | 450 | 791 | 445 | 1200 | 44 |
| XL | 657 | 475 | 74.5 | 66 | 135 | 649 | 500 | 814 | 445 | 1228 | 44 |
All measurements in millimetres unless marked (°) for angles.
