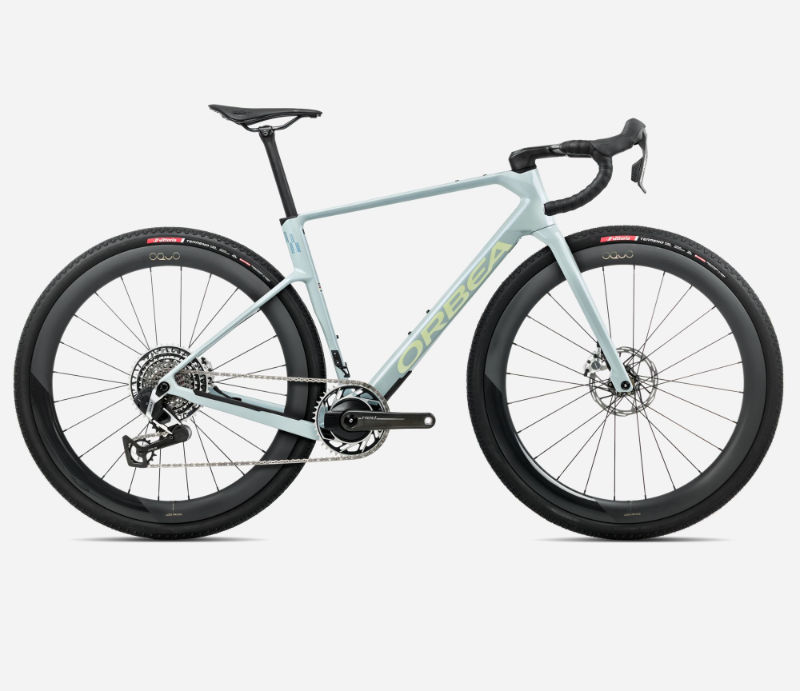

2026 Orbea Terra Race geometry
Full frame geometry for the 2026 Orbea Terra Race, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 514.9 | 375 | 74 | 70 | 95 | 523 | 405 | 680 | 78 | 420 | 1005 | 55 | 65.6 |
| S | 540 | 383 | 74 | 70.5 | 120 | 538 | 440 | 710.8 | 78 | 420 | 1018 | 55 | 62.4 |
| M | 560.3 | 389 | 73.5 | 71 | 139 | 555 | 470 | 735 | 78 | 420 | 1026 | 55 | 59.2 |
| L | 580 | 395 | 73.5 | 71 | 162 | 567 | 505 | 764.6 | 76 | 420 | 1040 | 55 | 59.2 |
| XL | 600 | 402 | 73 | 71.5 | 181 | 585 | 540 | 791.4 | 76 | 420 | 1048 | 55 | 56.1 |
| XXL | 625 | 409 | 73 | 72 | 205 | 600 | 575 | 821 | 76 | 420 | 1058 | 55 | 53 |
All measurements in millimetres unless marked (°) for angles.
