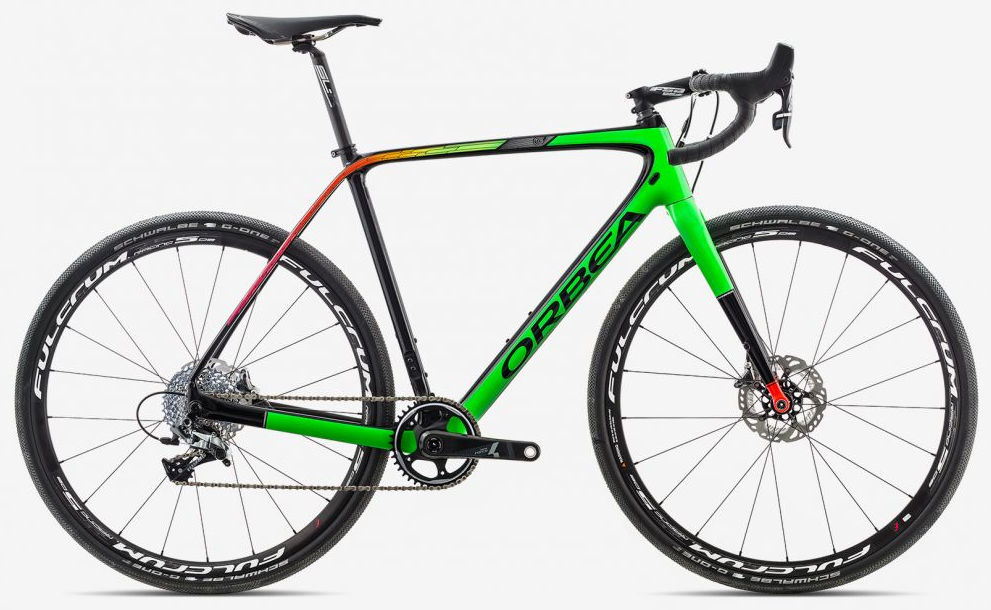

2016 Orbea Terra OMP geometry
Full frame geometry for the 2016 Orbea Terra OMP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 545 | 370 | 73.5 | 70.5 | 122 | 531 | 460 | 764 | 70 | 597 | 430 | 1017 |
| S | 560 | 378 | 73.5 | 70.5 | 138 | 543 | 510 | 796 | 70 | 610 | 430 | 1030 |
| M | 575 | 385 | 73.5 | 70.5 | 156 | 555 | 554 | 828 | 68 | 622 | 430 | 1043 |
| L | 600 | 392 | 73.5 | 70.5 | 182 | 570 | 590 | 858 | 68 | 639 | 430 | 1060 |
| XL | 625 | 400 | 73.5 | 70.5 | 212 | 585 | 630 | 893 | 65 | 656 | 430 | 1078 |
All measurements in millimetres unless marked (°) for angles.
