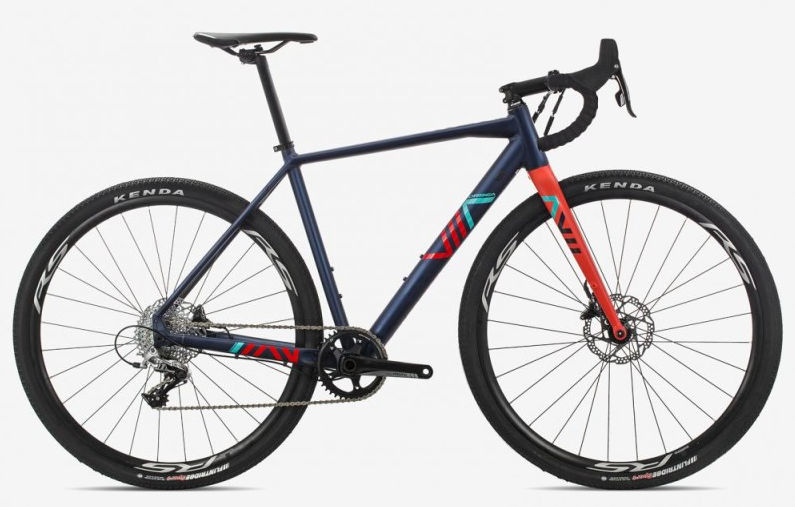

2019 Orbea Terra H geometry
Full frame geometry for the 2019 Orbea Terra H, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 525 | 366 | 74.5 | 70.5 | 100 | 512 | 455 | 763 | 70 | 430 | 1005 |
| XS | 545 | 373 | 74 | 71 | 120 | 529 | 485 | 787 | 70 | 430 | 1015 |
| S | 565 | 380 | 74 | 72 | 139 | 542 | 515 | 813 | 68 | 430 | 1020 |
| M | 585 | 387 | 73.5 | 72 | 162 | 560 | 545 | 839 | 66 | 430 | 1034 |
| L | 610 | 394 | 73.5 | 72.3 | 187 | 575 | 575 | 866 | 66 | 430 | 1046 |
| XL | 630 | 401 | 73.5 | 73 | 205 | 588 | 605 | 890 | 66 | 430 | 1052 |
All measurements in millimetres unless marked (°) for angles.
