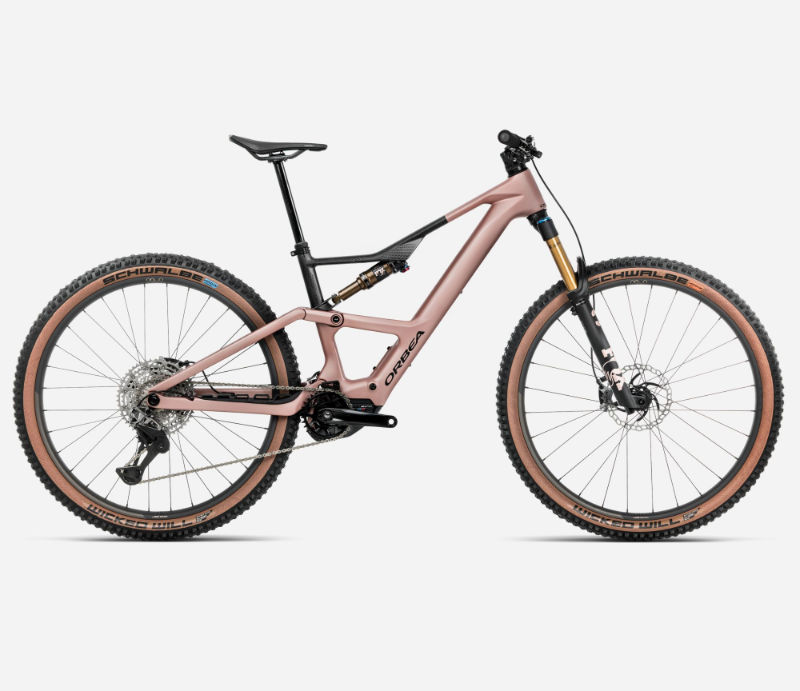

2026 Orbea Rise SL geometry
Full frame geometry for the 2026 Orbea Rise SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 609 | 440 | 78 | 65.5 | 95 | 568 | 405 | 37 | 440 | 1193 | 44 |
| M | 614 | 465 | 78 | 65.5 | 100 | 594 | 415 | 37 | 440 | 1220 | 44 |
| L | 623 | 490 | 78 | 65.5 | 110 | 620 | 430 | 37 | 440 | 1249 | 44 |
| XL | 632 | 515 | 78 | 65.5 | 120 | 647 | 460 | 37 | 440 | 1279 | 44 |
All measurements in millimetres unless marked (°) for angles.
