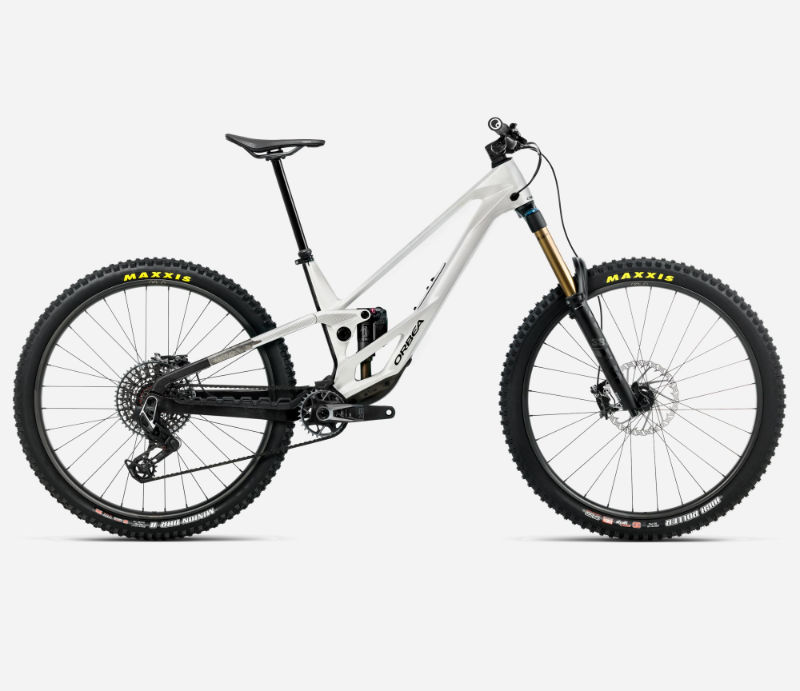

2026 Orbea Rallon geometry
Full frame geometry for the 2026 Orbea Rallon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 629.2 | 430 | 79.9 | 64.3 | 100 | 542.6 | 400 | 763 | 28 | 442 | 1209.9 | 44 |
| M | 638.2 | 455 | 79.4 | 64.3 | 110 | 574.5 | 405 | 756 | 28 | 442 | 1239.3 | 44 |
| L | 647.2 | 478 | 79.1 | 64.3 | 120 | 603.1 | 410 | 758 | 28 | 442 | 1266.6 | 44 |
| XL | 656.2 | 505 | 78.8 | 64.3 | 130 | 635.3 | 420 | 763 | 28 | 442 | 1298 | 44 |
All measurements in millimetres unless marked (°) for angles.
