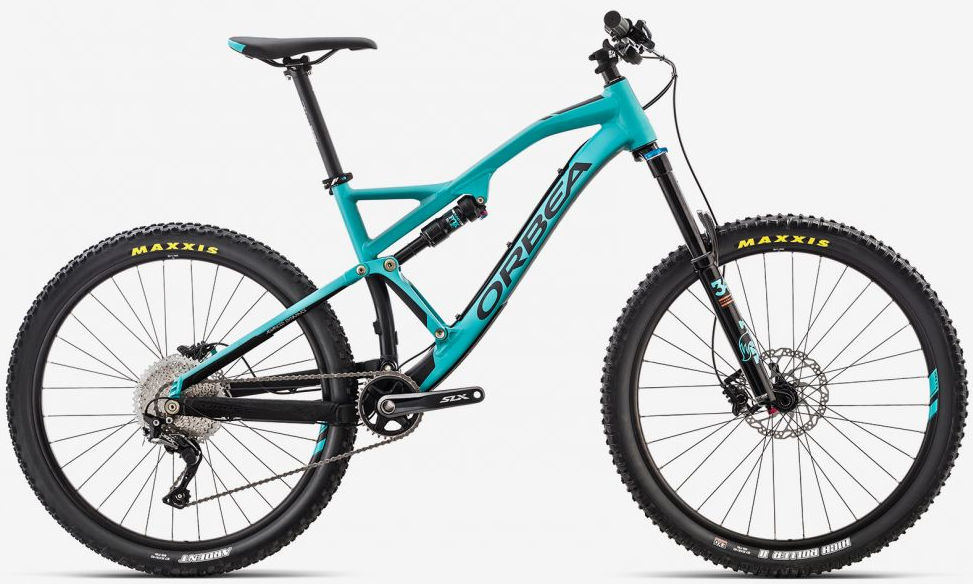

2016 Orbea Rallon X geometry
Full frame geometry for the 2016 Orbea Rallon X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 425 | 74.5 | 65.5 | 120 | 587 | 420 | 750 | 14 | 739 | 420 | 1159 | 44 |
| M | 612 | 447 | 74.5 | 65.5 | 130 | 611 | 455 | 770 | 14 | 764 | 420 | 1184 | 44 |
| L | 626 | 472 | 74.5 | 65.5 | 145 | 640 | 495 | 790 | 14 | 795 | 420 | 1215 | 44 |
All measurements in millimetres unless marked (°) for angles.
