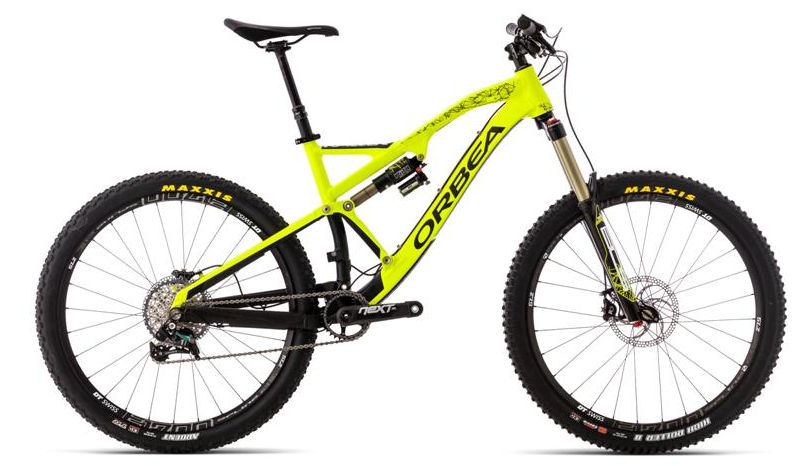

2015 Orbea Rallon X MKI geometry
Full frame geometry for the 2015 Orbea Rallon X MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 419 | 74.5 | 66 | 115 | 582 | 420 | 750 | 14 | 420 | 1148 |
| M | 611 | 442 | 74.5 | 66 | 120 | 606 | 455 | 770 | 14 | 420 | 1172 |
| L | 624 | 467 | 74.5 | 66 | 135 | 635 | 495 | 790 | 14 | 420 | 1204 |
All measurements in millimetres unless marked (°) for angles.
