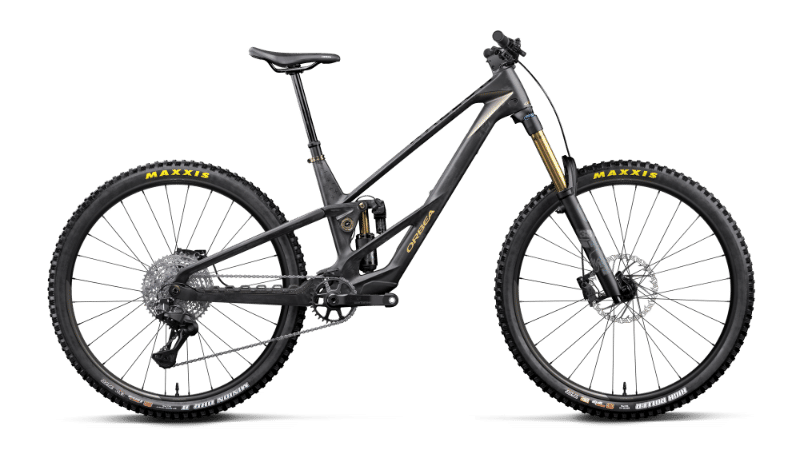

2026 Orbea Rallon RS geometry
Full frame geometry for the 2026 Orbea Rallon RS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 636.6 | 425.7 | 74.2 | 64.3 | 105 | 551 | 400 | 762.1 | 33.2 | 445 | 1214.6 | 44 |
| M | 641.2 | 450.8 | 74.2 | 64.3 | 110 | 576.9 | 405 | 756.6 | 33.2 | 445 | 1241.7 | 44 |
| L | 650.3 | 473.8 | 74.2 | 64.3 | 120 | 601.6 | 410 | 757.8 | 33.3 | 445 | 1269.1 | 44 |
| XL | 659.4 | 500.9 | 74.2 | 64.3 | 130 | 630.4 | 420 | 764.5 | 33.4 | 445 | 1300.4 | 44 |
All measurements in millimetres unless marked (°) for angles.
