2026 Orbea · DH

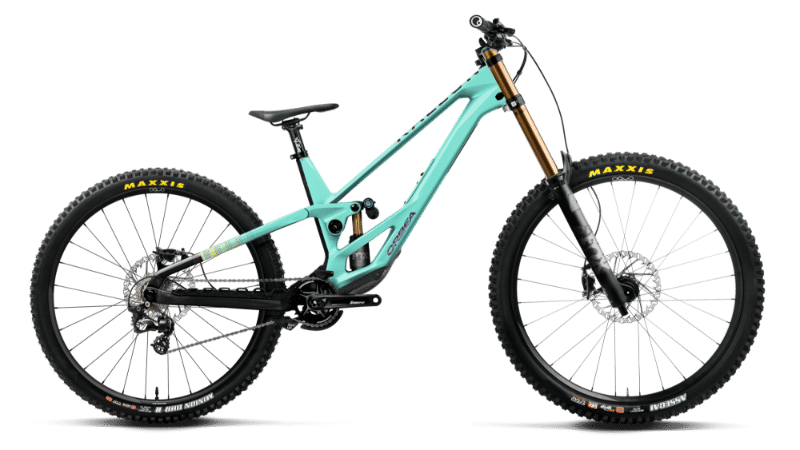

2026 Orbea Rallon DH geometry
Full frame geometry for the 2026 Orbea Rallon DH, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 632.5 | 425.2 | 79.4 | 63.8 | 100 | 543.3 | 400 | 767.6 | 439.9 | 1222 | 52 |
| M | 641.6 | 450.2 | 79 | 63.8 | 110 | 575.4 | 405 | 760.6 | 439.9 | 1251.4 | 52 |
| L | 650.7 | 473.3 | 78.6 | 63.8 | 120 | 603.9 | 410 | 762.5 | 439.9 | 1278.7 | 52 |
| XL | 659.8 | 500.3 | 78.4 | 63.8 | 130 | 636.2 | 420 | 767.5 | 439.9 | 1310.1 | 52 |
All measurements in millimetres unless marked (°) for angles.
