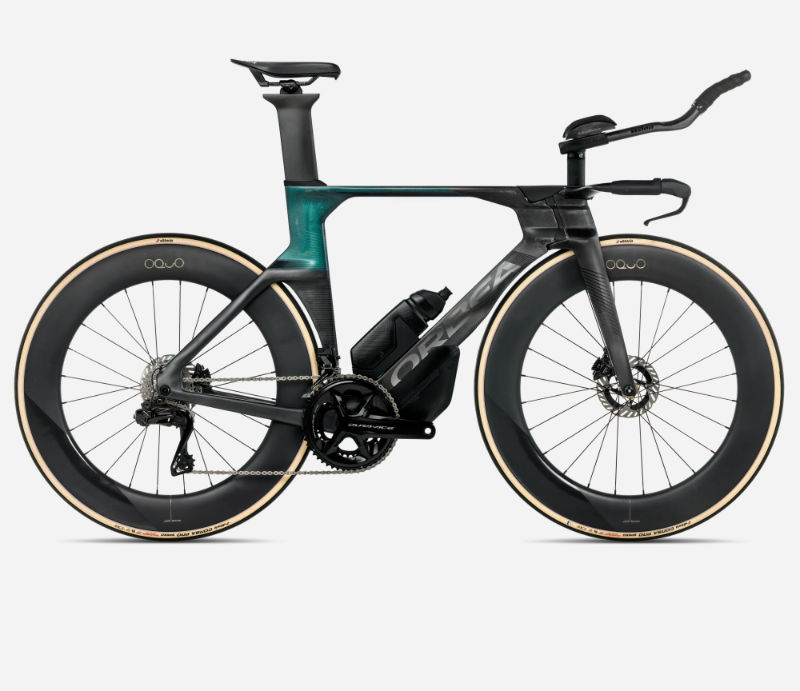

2026 Orbea Ordu geometry
Full frame geometry for the 2026 Orbea Ordu, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 361 | 59 | 746 | 75 | 578 | 405 | 971 | 60 |
| M/L | 550 | 385 | 96 | 781 | 75 | 613 | 405 | 1007 | 60 |
| S/M | 550 | 385 | 96 | 781 | 75 | 613 | 405 | 1007 | 60 |
| XL | 600 | 409 | 149 | 831 | 75 | 654 | 405 | 1048 | 60 |
All measurements in millimetres unless marked (°) for angles.
