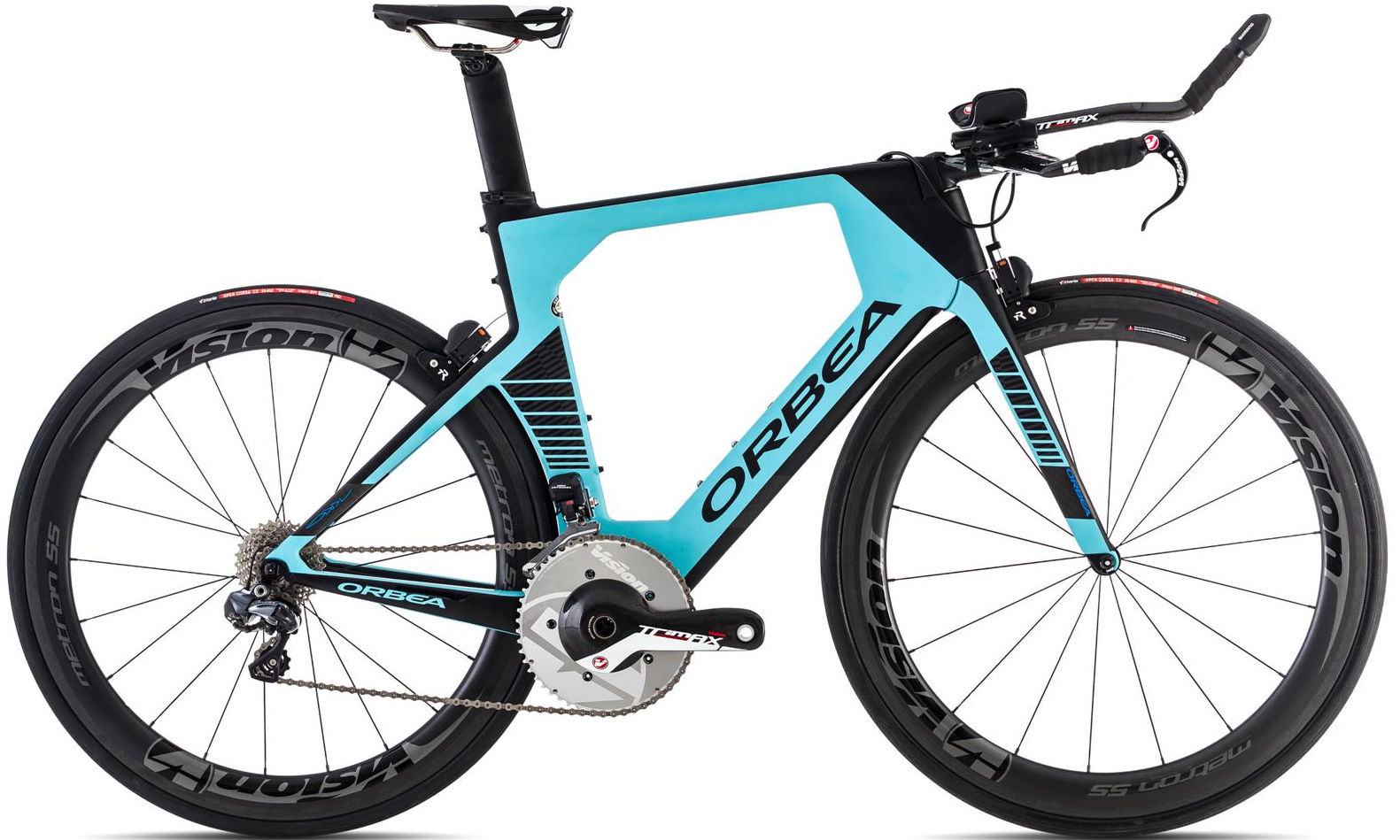

2016 Orbea Ordu OMP geometry
Full frame geometry for the 2016 Orbea Ordu OMP, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 465 | 370 | 78 | 71 | 72 | 469 | 493 | 751 | 60 | 569 | 405 | 966 | 53 | 59 |
| S | 490 | 390 | 78 | 71 | 85 | 494 | 508 | 759 | 72 | 593 | 405 | 989 | 53 | 59 |
| M | 515 | 410 | 78 | 72.5 | 104 | 519 | 533 | 784 | 72 | 599 | 405 | 995 | 45 | 58 |
| L | 540 | 430 | 78 | 73 | 128 | 544 | 559 | 810 | 72 | 622 | 405 | 1019 | 45 | 55 |
| XL | 565 | 445 | 77 | 73 | 154 | 575 | 587 | 838 | 72 | 645 | 405 | 1042 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
