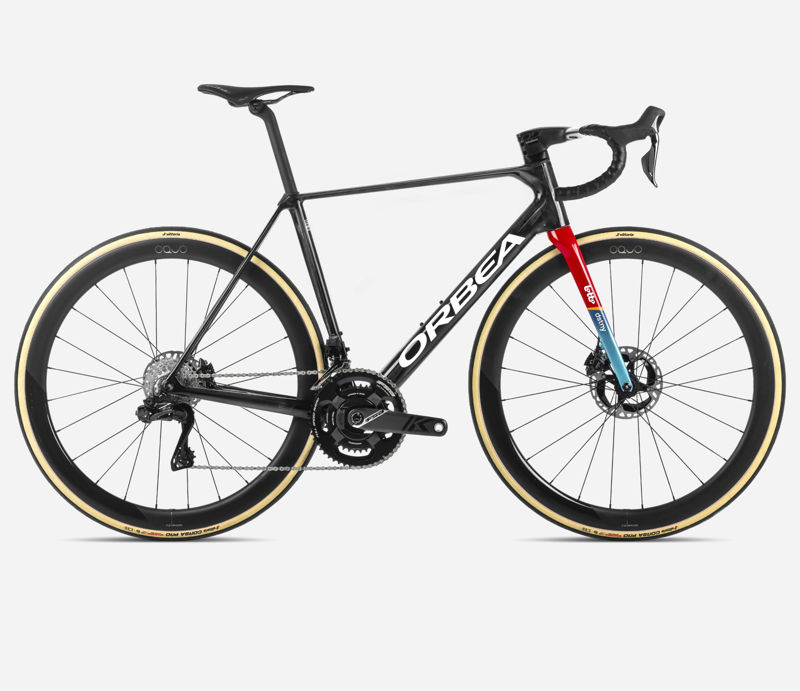

2023 Orbea Orca geometry
Full frame geometry for the 2023 Orbea Orca, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 370 | 74.5 | 71 | 110.5 | 510.3 | 440 | 736.5 | 72 | 408 | 971.8 | 48 | 66 |
| 49 | 515 | 375 | 74 | 71.5 | 118.2 | 522.7 | 460 | 748.5 | 72 | 408 | 975.4 | 48 | 62.8 |
| 51 | 533 | 380 | 73.7 | 72.2 | 134.6 | 535.9 | 480 | 767.5 | 72 | 408 | 980 | 48 | 58.4 |
| 53 | 552 | 385 | 73.5 | 72.8 | 152.9 | 548.5 | 500 | 788.5 | 70 | 408 | 981.2 | 43 | 59.9 |
| 55 | 572 | 391 | 73.5 | 73 | 173.1 | 560.4 | 520 | 808.5 | 70 | 408 | 991.4 | 43 | 58.7 |
| 57 | 590 | 398 | 73.2 | 73.2 | 191.2 | 576.1 | 540 | 826.5 | 70 | 408 | 1001.9 | 43 | 57.4 |
| 60 | 616 | 404 | 73.2 | 73.2 | 218.3 | 590 | 570 | 852.5 | 70 | 408 | 1015.6 | 43 | 57.4 |
All measurements in millimetres unless marked (°) for angles.
