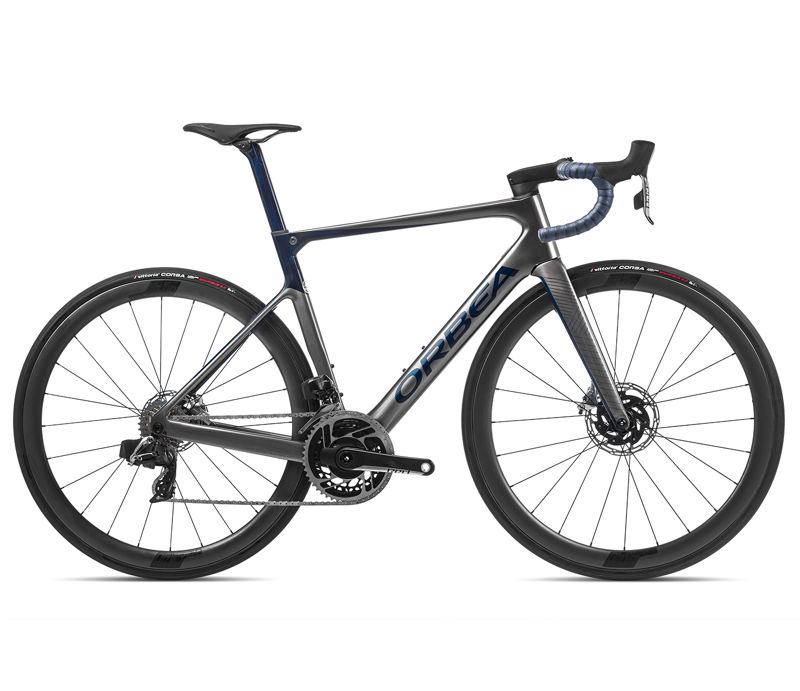

2022 Orbea Orca PWR geometry
Full frame geometry for the 2022 Orbea Orca PWR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506.1 | 370.1 | 74.5 | 71 | 105.6 | 510.5 | 440 | 729 | 72 | 408 | 971.9 | 48 |
| 49 | 515 | 375.6 | 74 | 71.5 | 113.2 | 523.2 | 460 | 743 | 72 | 408 | 976 | 48 |
| 51 | 533 | 380 | 73.7 | 72.2 | 129.6 | 535.8 | 480 | 761 | 72 | 408 | 980 | 48 |
| 53 | 552 | 385 | 73.5 | 72.8 | 147.9 | 548.5 | 500 | 782 | 70 | 408 | 981.2 | 43 |
| 55 | 571.9 | 391 | 73.5 | 73 | 168 | 560.4 | 520 | 802 | 70 | 408 | 991.4 | 43 |
| 57 | 590 | 398 | 73.2 | 73.2 | 186.2 | 576.1 | 540 | 820 | 70 | 408 | 1001.9 | 43 |
| 60 | 616 | 404 | 73.2 | 73.2 | 213.3 | 590 | 570 | 848 | 70 | 408 | 1015.7 | 43 |
All measurements in millimetres unless marked (°) for angles.
