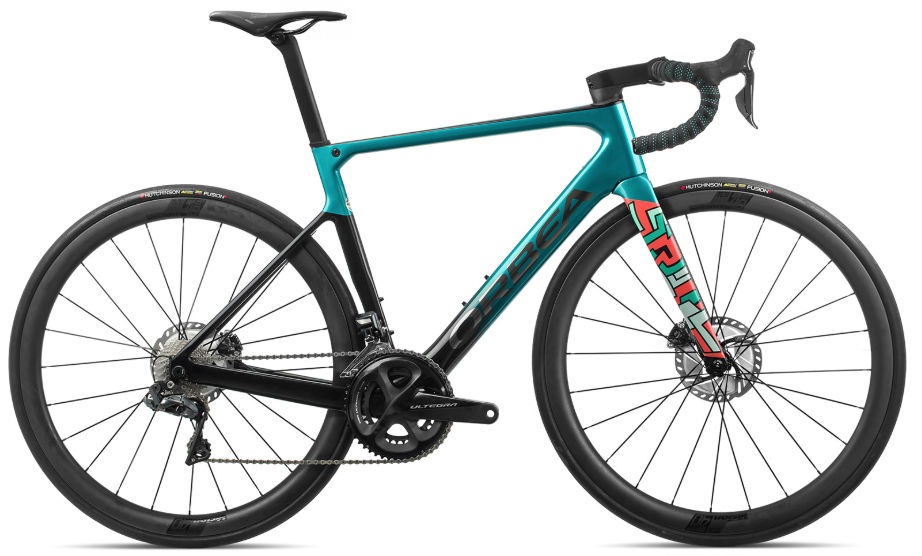

2019 Orbea Orca OMX geometry
Full frame geometry for the 2019 Orbea Orca OMX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 370 | 74.5 | 71 | 106 | 510 | 440 | 726 | 72 | 575 | 408 | 972 | 48 | 67 |
| 49 | 515 | 376 | 74 | 71.5 | 113 | 523 | 460 | 740 | 72 | 579 | 408 | 976 | 48 | 64 |
| 51 | 533 | 380 | 73.7 | 72.2 | 130 | 536 | 480 | 758 | 72 | 583 | 408 | 980 | 48 | 60 |
| 53 | 552 | 385 | 73.5 | 72.8 | 148 | 549 | 500 | 779 | 70 | 583 | 408 | 981 | 43 | 61 |
| 55 | 572 | 391 | 73.5 | 73 | 168 | 560 | 520 | 799 | 70 | 594 | 408 | 991 | 43 | 60 |
| 57 | 590 | 398 | 73.2 | 73.2 | 186 | 576 | 540 | 818 | 70 | 604 | 408 | 1002 | 43 | 59 |
| 60 | 616 | 404 | 73.2 | 73.2 | 213 | 590 | 570 | 845 | 70 | 618 | 408 | 1016 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
