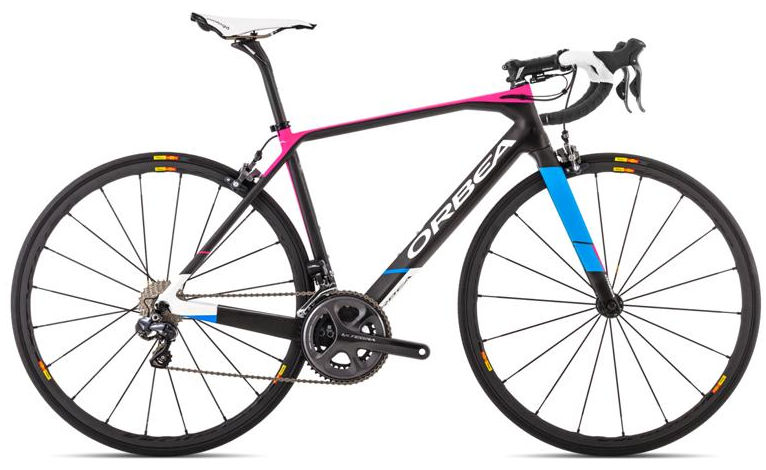

2014 Orbea Orca OMR geometry
Full frame geometry for the 2014 Orbea Orca OMR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 365 | 73.5 | 71 | 104 | 515 | 410 | 708 | 70 | 568 | 405 | 970 | 53 | 59 |
| 49 | 515 | 372 | 73.5 | 71.4 | 112 | 521 | 440 | 726 | 70 | 575 | 405 | 977 | 53 | 56 |
| 51 | 533 | 380 | 73.5 | 71.8 | 130 | 538 | 470 | 751 | 70 | 585 | 405 | 987 | 53 | 54 |
| 53 | 552 | 385 | 73.5 | 72.1 | 145 | 549 | 490 | 771 | 70 | 584 | 405 | 985 | 43 | 63 |
| 55 | 572 | 391 | 73.2 | 72.5 | 165 | 564 | 510 | 791 | 70 | 592 | 408 | 996 | 43 | 60 |
| 57 | 590 | 398 | 73.2 | 73 | 182 | 576 | 530 | 807 | 70 | 600 | 408 | 1004 | 43 | 57 |
| 60 | 616 | 404 | 73.2 | 73.5 | 207 | 590 | 560 | 835 | 70 | 609 | 408 | 1013 | 43 | 54 |
All measurements in millimetres unless marked (°) for angles.
