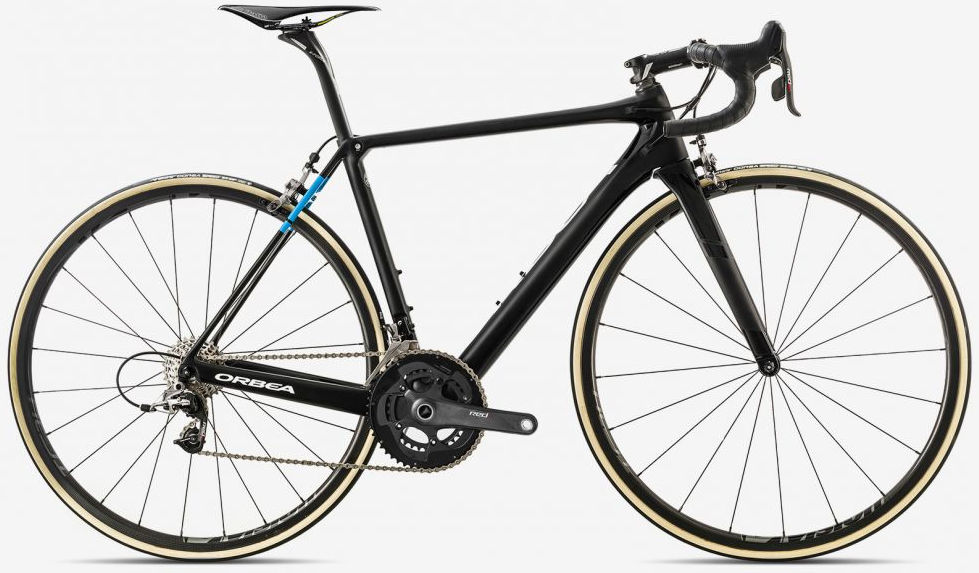

2016 Orbea Orca OMR MKII geometry
Full frame geometry for the 2016 Orbea Orca OMR MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 506 | 370 | 74.5 | 71 | 104 | 510 | 440 | 729 | 70 | 932 | 408 | 972 | 48 | 65 |
| 49 | 515 | 375 | 74 | 71.5 | 111 | 522 | 460 | 742 | 70 | 936 | 408 | 975 | 48 | 62 |
| 51 | 533 | 380 | 73.7 | 72.2 | 130 | 536 | 480 | 758 | 70 | 941 | 408 | 980 | 48 | 57 |
| 53 | 552 | 385 | 73.5 | 72.8 | 148 | 548 | 500 | 780 | 70 | 946 | 408 | 981 | 43 | 59 |
| 55 | 572 | 391 | 73.5 | 73 | 168 | 560 | 520 | 800 | 70 | 956 | 408 | 991 | 43 | 58 |
| 57 | 590 | 398 | 73.2 | 73.2 | 186 | 576 | 540 | 817 | 70 | 967 | 408 | 1002 | 43 | 57 |
| 60 | 616 | 404 | 73.2 | 73.2 | 213 | 590 | 570 | 844 | 70 | 981 | 408 | 1027 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
