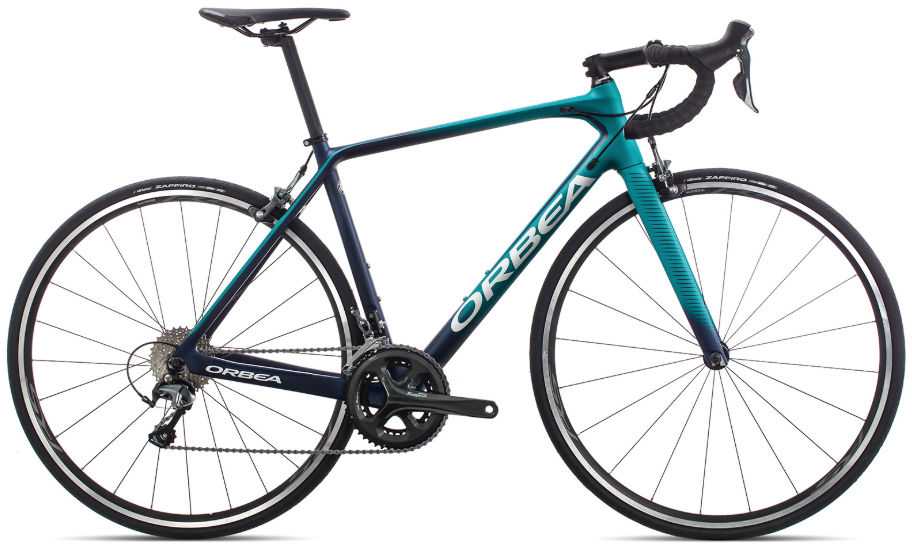

2019 Orbea Orca OME geometry
Full frame geometry for the 2019 Orbea Orca OME, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 515 | 367 | 74.5 | 71 | 110 | 507 | 440 | 738 | 72 | 575 | 408 | 972 | 50 | 64 |
| 49 | 530 | 370 | 74 | 71.5 | 125 | 522 | 460 | 756 | 72 | 580 | 408 | 977 | 50 | 60 |
| 51 | 547 | 375 | 73.7 | 72 | 140 | 535 | 480 | 773 | 72 | 586 | 408 | 983 | 50 | 57 |
| 53 | 564 | 382 | 73.5 | 72.8 | 155 | 550 | 500 | 793 | 70 | 585 | 408 | 983 | 43 | 60 |
| 55 | 584 | 387 | 73.5 | 73 | 175 | 561 | 520 | 813 | 70 | 593 | 408 | 991 | 43 | 58 |
| 57 | 603 | 393 | 73.2 | 73.2 | 195 | 575 | 540 | 831 | 70 | 603 | 408 | 1001 | 43 | 57 |
| 60 | 627 | 402 | 73.2 | 73.2 | 220 | 591 | 570 | 858 | 70 | 617 | 408 | 1015 | 43 | 57 |
All measurements in millimetres unless marked (°) for angles.
