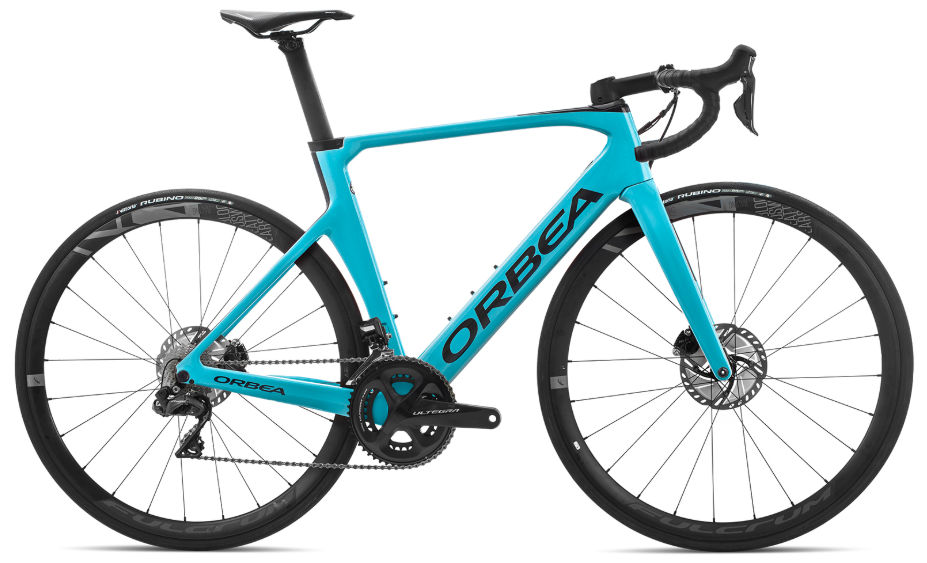

2019 Orbea Orca Aero Disc geometry
Full frame geometry for the 2019 Orbea Orca Aero Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 501 | 370 | 74.5 | 71 | 100 | 509 | 450 | 746 | 72 | 573 | 408 | 970 | 48 | 66 |
| 49 | 510 | 375 | 74 | 71.5 | 108 | 521 | 465 | 759 | 72 | 577 | 408 | 974 | 48 | 63 |
| 51 | 528 | 380 | 73.7 | 72.2 | 124 | 534 | 490 | 781 | 72 | 581 | 408 | 978 | 48 | 58 |
| 53 | 548 | 385 | 73.5 | 72.8 | 144 | 547 | 515 | 807 | 70 | 582 | 408 | 980 | 43 | 55 |
| 55 | 567 | 391 | 73.5 | 73 | 163 | 559 | 535 | 826 | 70 | 593 | 408 | 991 | 43 | 53 |
| 57 | 585 | 398 | 73.2 | 73.2 | 181 | 575 | 555 | 846 | 70 | 602 | 408 | 1000 | 43 | 52 |
| 60 | 611 | 404 | 73.2 | 73.2 | 208 | 588 | 580 | 872 | 70 | 616 | 408 | 1014 | 43 | 52 |
All measurements in millimetres unless marked (°) for angles.
