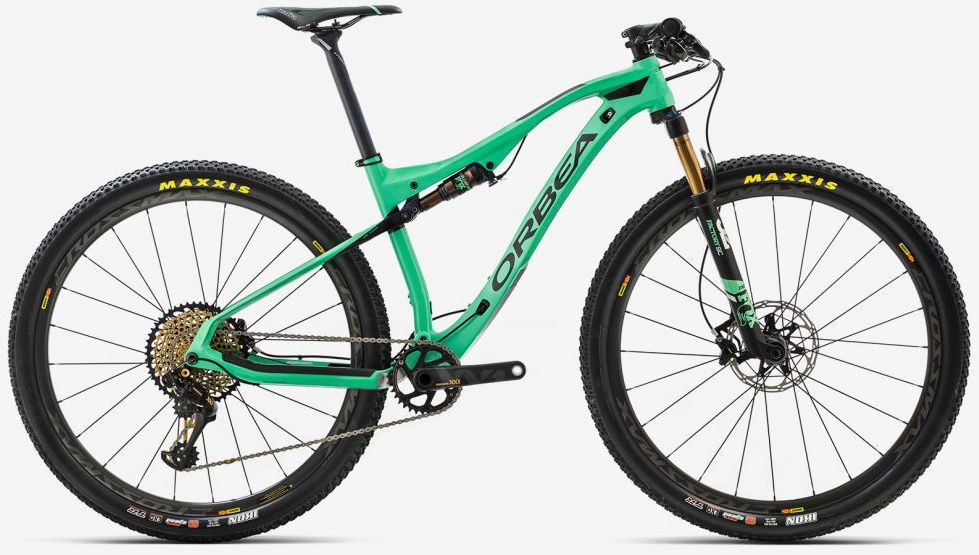

2016 Orbea Oiz OMR geometry
Full frame geometry for the 2016 Orbea Oiz OMR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 565 | 390 | 74 | 70 | 100 | 552 | 406 | 701 | 27 | 633 | 425 | 1057 | 44 |
| M (27.5) | 574 | 415 | 74 | 70 | 110 | 580 | 432 | 711 | 27 | 661 | 425 | 1085 | 44 |
| M (29) | 597 | 417 | 74 | 70 | 100 | 589 | 432 | 728 | 45 | 662 | 440 | 1098 | 44 |
| L (29) | 606 | 439 | 74 | 70 | 110 | 613 | 470 | 748 | 45 | 686 | 440 | 1122 | 44 |
| XL (29) | 616 | 461 | 74 | 70 | 120 | 638 | 520 | 790 | 45 | 712 | 440 | 1148 | 44 |
All measurements in millimetres unless marked (°) for angles.
