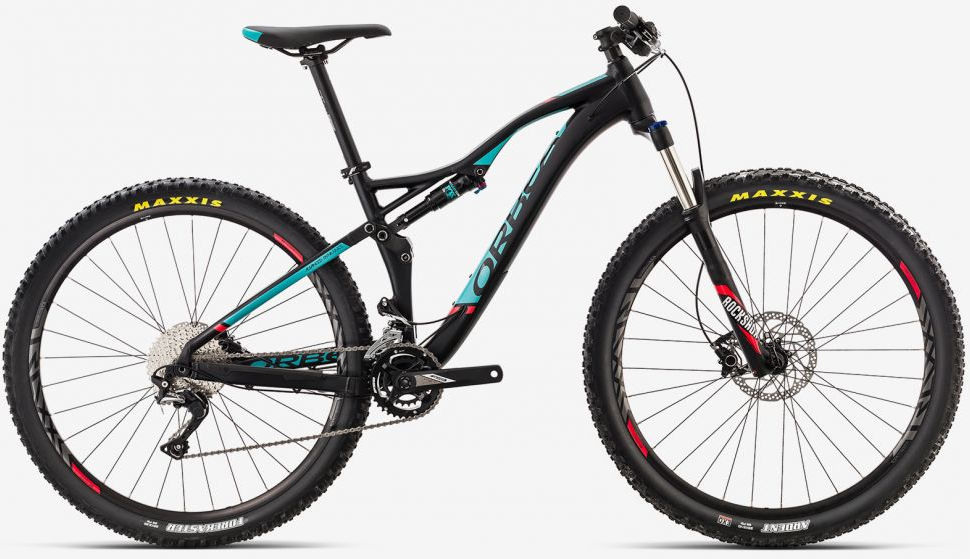

2016 Orbea Occam TR H geometry
Full frame geometry for the 2016 Orbea Occam TR H, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M (29) | 606 | 431 | 74.5 | 68 | 115 | 599 | 432 | 743 | 35 | 717 | 435 | 1150 |
| L (29) | 615 | 450 | 74.5 | 68 | 125 | 621 | 470 | 769 | 35 | 740 | 435 | 1173 |
| XL (29) | 629 | 472 | 74.5 | 68 | 140 | 647 | 520 | 782 | 35 | 768 | 435 | 1201 |
All measurements in millimetres unless marked (°) for angles.
