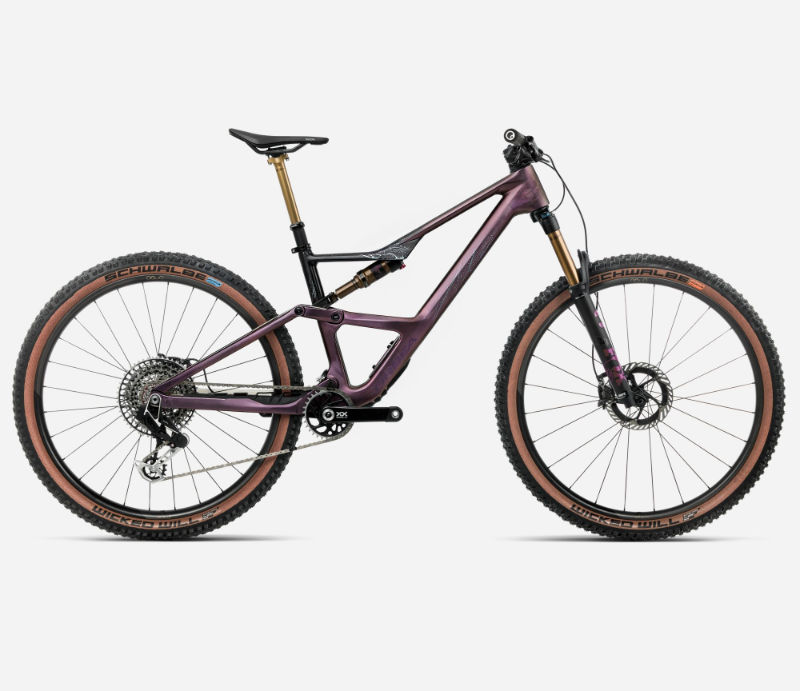

2024 Orbea Occam TL geometry
Full frame geometry for the 2024 Orbea Occam TL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 435 | 77.5 | 64.5 | 95 | 571 | 405 | 28 | 440 | 1199 | 44 |
| M | 621 | 460 | 77.5 | 64.5 | 100 | 597 | 415 | 28 | 440 | 1226 | 44 |
| L | 630 | 485 | 77.5 | 64.5 | 110 | 624 | 430 | 28 | 440 | 1255 | 44 |
| XL | 639 | 510 | 77.5 | 64.5 | 120 | 651 | 460 | 28 | 440 | 1285 | 44 |
All measurements in millimetres unless marked (°) for angles.
