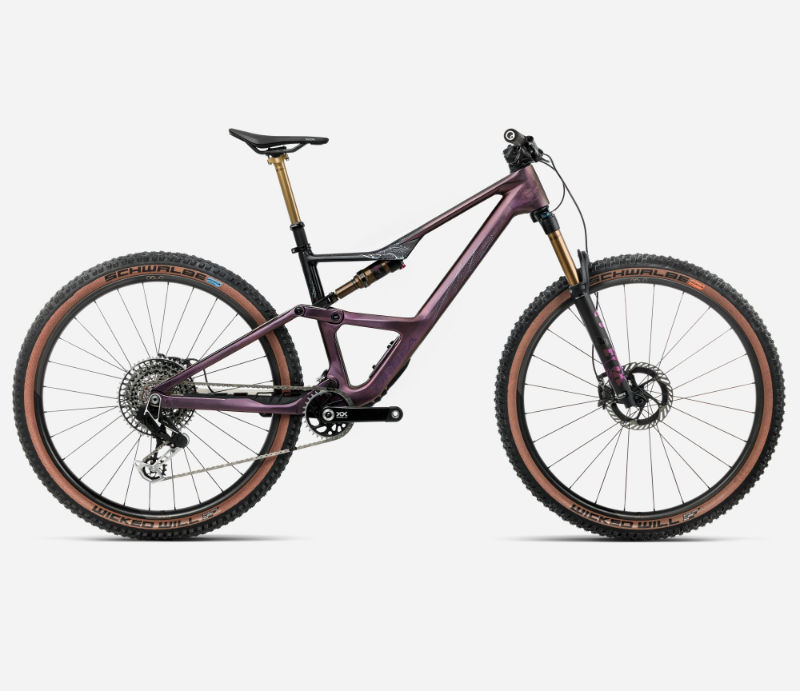

2024 Orbea Occam SL geometry
Full frame geometry for the 2024 Orbea Occam SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 440 | 78 | 65.5 | 95 | 570 | 405 | 37 | 440 | 1191 | 44 |
| M | 615 | 465 | 78 | 65.5 | 100 | 596 | 415 | 37 | 440 | 1218 | 44 |
| L | 624 | 490 | 78 | 65.5 | 110 | 622 | 430 | 37 | 440 | 1245 | 44 |
| XL | 633 | 515 | 78 | 65.5 | 120 | 649 | 460 | 37 | 440 | 1276 | 44 |
All measurements in millimetres unless marked (°) for angles.
