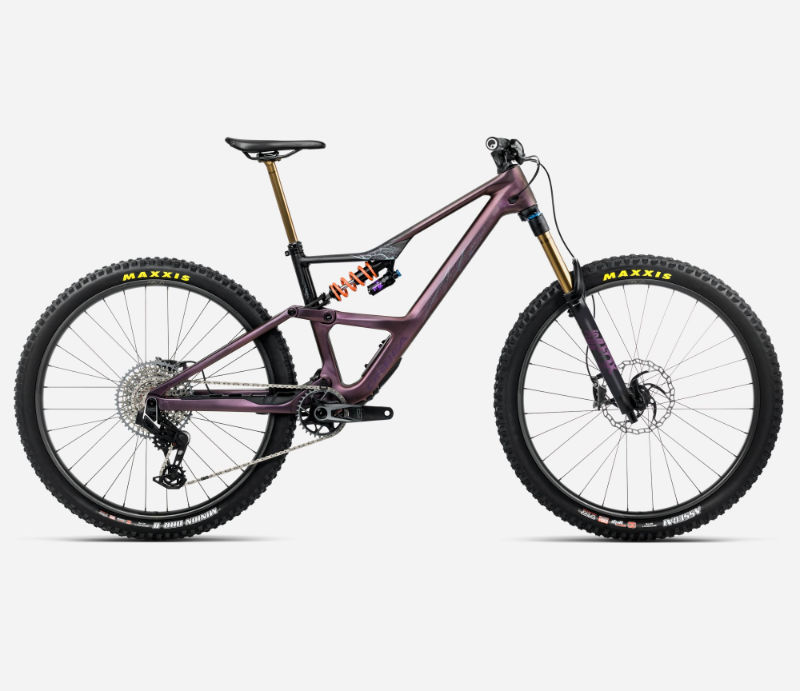

2026 Orbea Occam LT geometry
Full frame geometry for the 2026 Orbea Occam LT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 618 | 432 | 77 | 65 | 95 | 572 | 405 | 26 | 438 | 1191 | 44 |
| M | 622 | 458 | 77 | 65 | 100 | 597 | 415 | 26 | 438 | 1218 | 44 |
| L | 631 | 483 | 77 | 65 | 110 | 625 | 430 | 26 | 438 | 1248 | 44 |
| XL | 641 | 508 | 77 | 65 | 120 | 652 | 460 | 26 | 438 | 1277 | 44 |
All measurements in millimetres unless marked (°) for angles.
