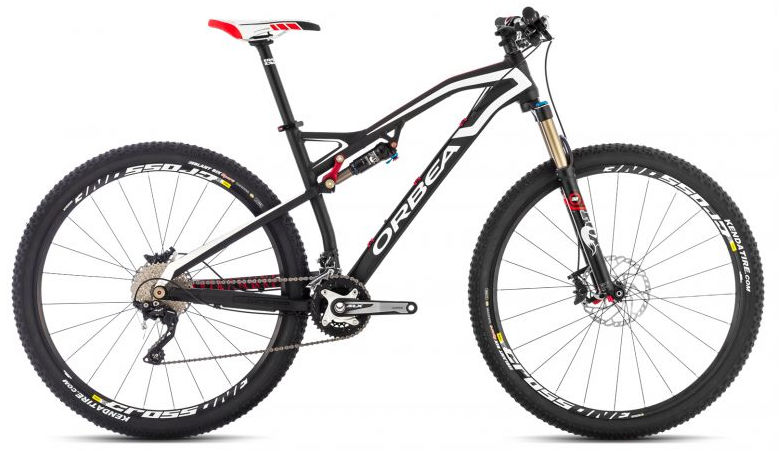

2015 Orbea Occam H geometry
Full frame geometry for the 2015 Orbea Occam H, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 608 | 402 | 74 | 70 | 110 | 577 | 420 | 720 | 44 | 445 | 1098 |
| M | 618 | 435 | 74 | 70 | 120 | 612 | 470 | 755 | 44 | 445 | 1133 |
| L | 632 | 458 | 74 | 70 | 135 | 639 | 520 | 780 | 44 | 445 | 1161 |
All measurements in millimetres unless marked (°) for angles.
