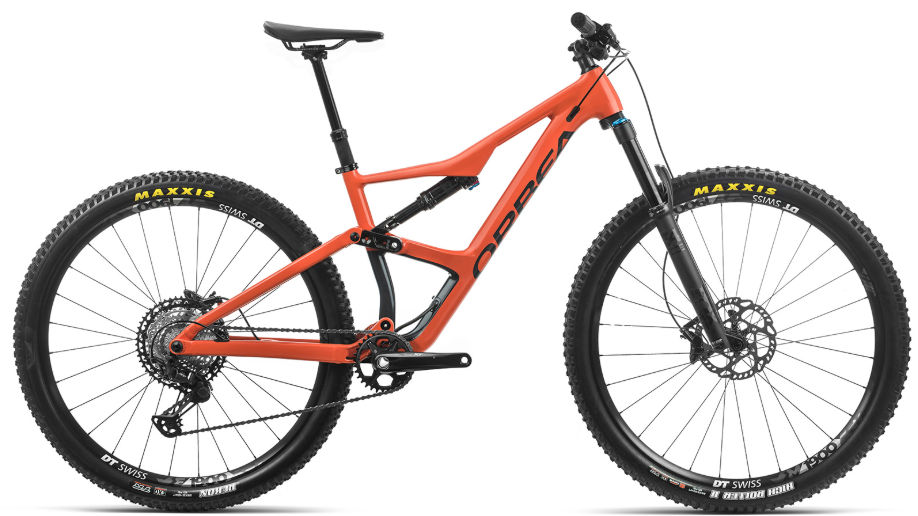

2019 Orbea Occam H MKII geometry
Full frame geometry for the 2019 Orbea Occam H MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 604 | 425 | 77 | 66 | 95 | 565 | 381 | 754 | 35 | 727 | 440 | 1165 | 44 | 117 |
| M | 613 | 450 | 77 | 66 | 105 | 592 | 419 | 778 | 35 | 756 | 440 | 1194 | 44 | 117 |
| L | 627 | 474 | 77 | 66 | 120 | 619 | 457 | 805 | 35 | 786 | 440 | 1224 | 44 | 117 |
| XL | 646 | 500 | 77 | 66 | 140 | 649 | 508 | 841 | 35 | 821 | 440 | 1259 | 44 | 117 |
All measurements in millimetres unless marked (°) for angles.
