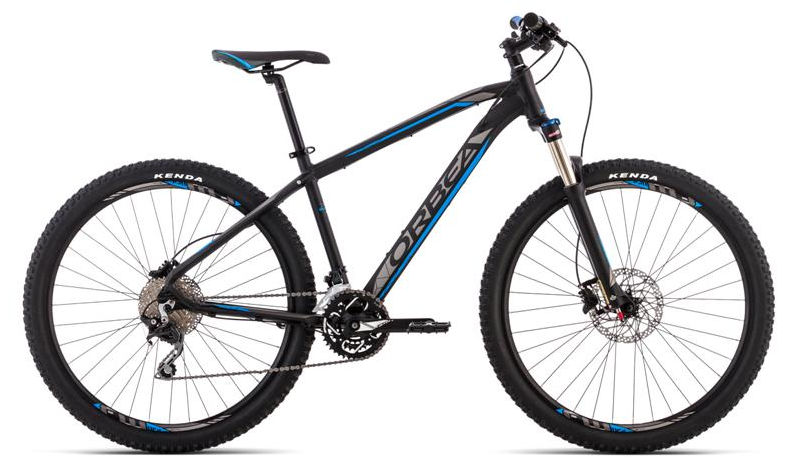

2015 Orbea MX geometry
Full frame geometry for the 2015 Orbea MX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 583 | 370 | 73 | 69 | 100 | 548 | 388 | 773 | 45 | 440 | 1054 | 42 |
| M (27.5) | 593 | 394 | 73 | 70 | 110 | 575 | 430 | 798 | 45 | 440 | 1076 | 42 |
| L (27.5) | 602 | 413 | 73 | 70 | 120 | 597 | 460 | 810 | 45 | 440 | 1099 | 42 |
| M (29) | 628 | 386 | 73 | 70 | 110 | 578 | 430 | 813 | 65 | 450 | 1085 | 46 |
| L (29) | 633 | 394 | 73 | 70 | 115 | 587 | 470 | 834 | 65 | 450 | 1095 | 46 |
| XL (29) | 661 | 433 | 73 | 70 | 145 | 635 | 540 | 877 | 65 | 450 | 1144 | 46 |
All measurements in millimetres unless marked (°) for angles.
