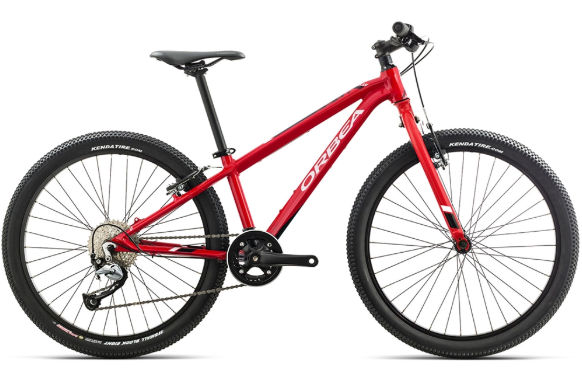

2018 Orbea MX Kids geometry
Full frame geometry for the 2018 Orbea MX Kids, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 16 | 323 | 288 | 73.2 | 71 | 90 | 385 | 207 | 8 | 311 | 744 |
| 20 | 425 | 320 | 74 | 66 | 95 | 445 | 257 | 16 | 343 | 630 |
| 24 | 500 | 353 | 72 | 66 | 90 | 519 | 329 | 30 | 387 | 939 |
| 26 | 538 | 371 | 73 | 70 | 90 | 536 | 367 | 45 | 425 | 1015 |
All measurements in millimetres unless marked (°) for angles.
