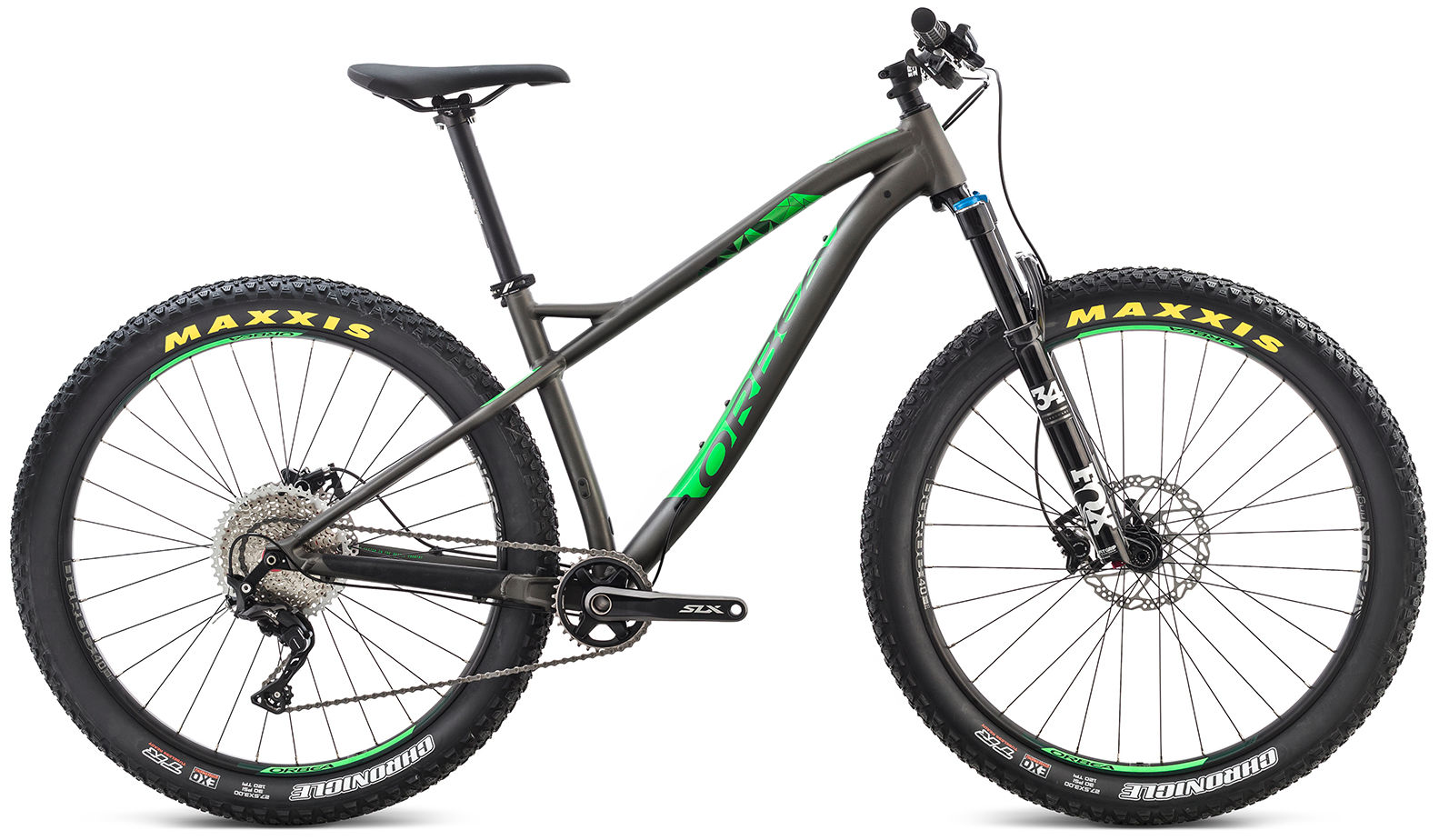

2016 Orbea Loki H geometry
Full frame geometry for the 2016 Orbea Loki H, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 384 | 73 | 67 | 100 | 570 | 381 | 791 | 60 | 680 | 430 | 1103 |
| M | 626 | 410 | 73 | 67 | 105 | 599 | 432 | 795 | 60 | 708 | 430 | 1131 |
| L | 635 | 430 | 73 | 67 | 115 | 621 | 470 | 804 | 60 | 732 | 430 | 1155 |
| XL | 648 | 453 | 73 | 67 | 130 | 647 | 520 | 813 | 60 | 760 | 430 | 1184 |
All measurements in millimetres unless marked (°) for angles.
