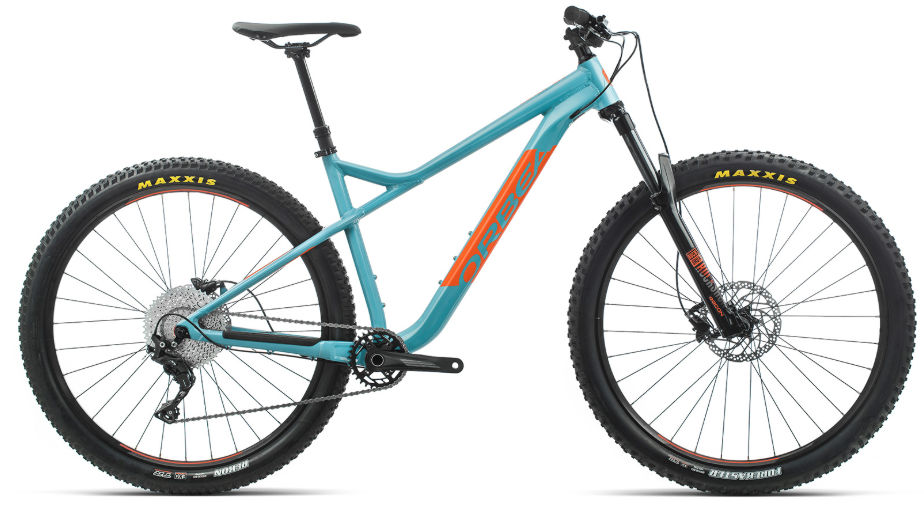

2019 Orbea Laufey MKII geometry
Full frame geometry for the 2019 Orbea Laufey MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 632 | 409 | 75 | 65.5 | 95 | 578 | 381 | 678 | 65 | 719 | 435 | 1146 | 44 | 123 |
| M | 636 | 435 | 75 | 65.5 | 100 | 606 | 432 | 714 | 65 | 747 | 435 | 1174 | 44 | 123 |
| L | 645 | 459 | 75 | 65.5 | 110 | 632 | 470 | 726 | 65 | 775 | 435 | 1202 | 44 | 123 |
| XL | 664 | 484 | 75 | 65.5 | 130 | 662 | 521 | 763 | 65 | 808 | 435 | 1235 | 44 | 123 |
All measurements in millimetres unless marked (°) for angles.
