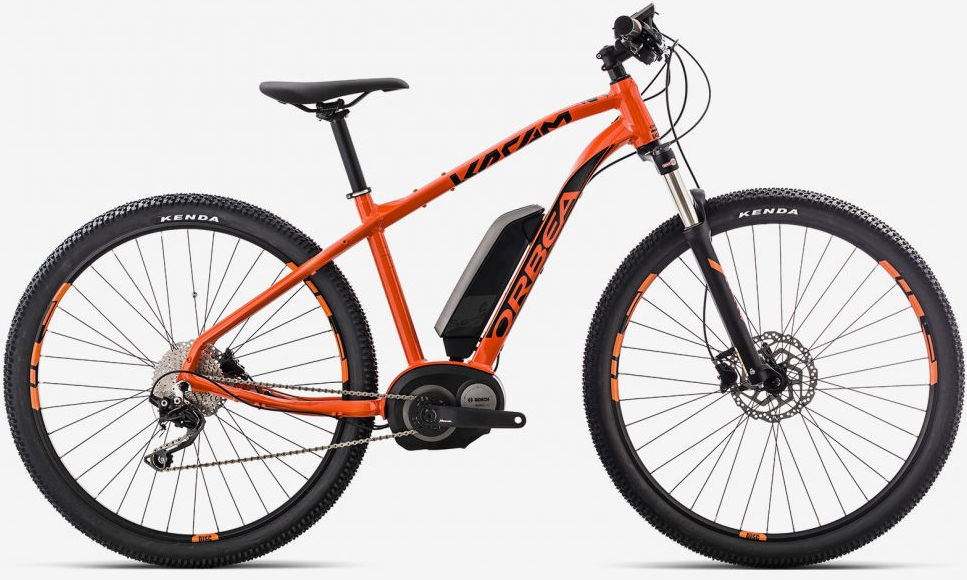

2016 Orbea Keram geometry
Full frame geometry for the 2016 Orbea Keram, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 616 | 360 | 73 | 69 | 130 | 550 | 418 | 792 | 52 | 626 | 481 | 1102 |
| M | 637 | 374 | 73 | 68 | 130 | 570 | 450 | 822 | 63 | 659 | 481 | 1133 |
| L | 656 | 403 | 73 | 68 | 150 | 605 | 530 | 855 | 63 | 696 | 481 | 1170 |
All measurements in millimetres unless marked (°) for angles.
